The PI5C34X2245B from Diodes Incorporated is a high-performance, 3.3V, 16-bit to 32-bit multiplexer/demultiplexer bus switch designed with precision and efficiency in mind. This switch is a part of Diodes Incorporated's extensive range of integrated circuits that are tailored for high-speed signal switching applications within the computing, networking, and telecommunications sectors.

Key Features

• Low On-Resistance: The device features a low on-state resistance of 5 ohms typical, which ensures minimal signal distortion and power loss during operation.
• Wide Voltage Range: It operates over a wide voltage range from 3.0V to 3.6V, accommodating various system voltages and providing design flexibility.
• High Bandwidth: With a bandwidth greater than 250 MHz, the PI5C34X2245B is capable of handling the demands of high-speed data transmission.
• Quick Switching: Fast switch times (turn-on time of 0.25ns and turn-off time of 0.15ns typical) enable rapid signal routing, reducing latency in critical applications.
• Bus Hold: The device incorporates a bus hold feature which maintains the last active bus state during power-off or float, thus preventing data corruption.

Applications

The PI5C34X2245B is ideally suited for a variety of applications where efficient and reliable signal routing is crucial. These include:

• High-speed data transfer paths
• Signal gating
• Bus isolation
• Backplane switching
• Networking equipment such as routers and switches

Package and Quality

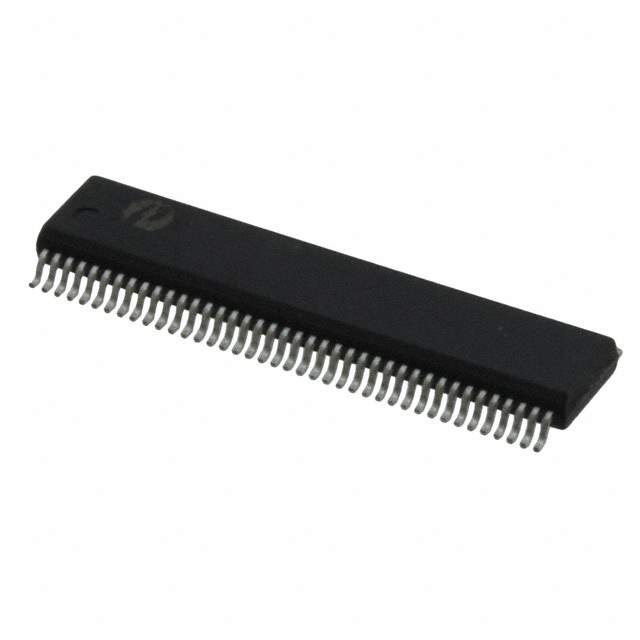

The PI5C34X2245B comes in a TSSOP (Thin Shrink Small Outline Package) which is designed for space-saving on PCBs without compromising performance. This package ensures a compact footprint while offering adequate thermal performance for the device. Diodes Incorporated is committed to high standards of quality and reliability, and this product is no exception, meeting stringent industry specifications.

For detailed specifications, application notes, and additional resources, please refer to the official Diodes Incorporated datasheets and product documentation.
