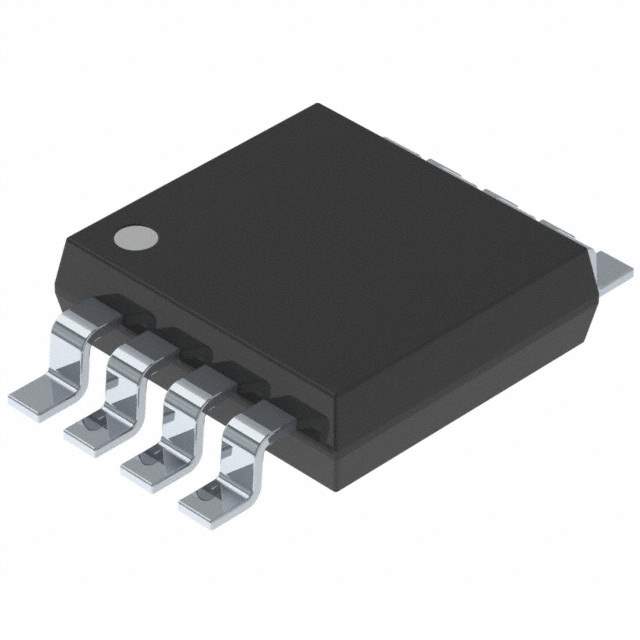

Overview of PI4ULS5V202UEX

The PI4ULS5V202UEX is a high-performance, two-bit, dual-supply level translator designed by Diodes Incorporated. This device facilitates communication between devices operating at different voltage levels within a digital system, thus solving the compatibility issues that arise when interfacing components with mismatched logic levels.

Key Features

• Bidirectional Translation: The PI4ULS5V202UEX supports bidirectional level shifting, which means it can translate signals in both directions, from VCCA to VCCB and vice versa, without the need for a direction control signal.
• Dual-Supply Operation: It operates with dual supply voltages, VCCA and VCCB, which can range from 1.1V to 3.6V, allowing for level translation between a wide range of voltage levels.
• High-Speed Performance: This component is optimized for high-speed performance, making it suitable for fast data transfer applications.
• Low Standby Current: The low standby current feature ensures minimal power consumption when the device is not actively translating signals.
• ESD Protection: Integrated ESD protection circuits safeguard the device against electrostatic discharge, enhancing its reliability and longevity in harsh environments.

Applications

The PI4ULS5V202UEX is ideal for a variety of applications that require level translation, including:

• Communication between microcontrollers and peripheral devices with different voltage domains
• Interface bridging in multi-voltage systems
• Data transfer in portable and battery-powered devices
• Signal level translation for buses such as I2C, SMBus, and PMBus

Package and Quality

The device comes in an ultra-compact X2-DFN1410-6 (Type B) package, which is suitable for space-constrained applications. Diodes Incorporated ensures that the PI4ULS5V202UEX meets stringent quality standards, providing reliable performance for critical applications.

Conclusion

The PI4ULS5V202UEX from Diodes Incorporated is an essential component when it comes to establishing seamless communication between digital circuits operating at different logic levels. Its high-speed capabilities, combined with low power consumption and robust ESD protection, make it an excellent choice for designers looking to create flexible, high-performance electronic systems.
