The PI3DPX1205AZLBE from Diodes Incorporated is a high-performance, four differential channel, two-to-one multiplexer and demultiplexer designed for 2-lane DisplayPort signals, USB 3.2/4.0 Gen 1/2, and Thunderbolt 3 applications. This versatile component is engineered to facilitate the latest high-speed data interfaces, offering an impressive data rate of up to 20 Gbps per channel.

Key Features

• High-Speed Performance: Supports data rates up to 20 Gbps, making it suitable for ultra-fast data transfer applications.
• Compatibility: Designed for use with DisplayPort 1.4, USB 3.2/4.0 Gen 1/2, and Thunderbolt 3 interfaces.
• Switching Capabilities: Acts as a 2:1 or 1:2 mux/demux, providing flexibility in signal routing for various high-speed protocols.
• Low Insertion Loss: Ensures minimal signal degradation for maintaining signal integrity over longer distances.
• Low Crosstalk: Minimizes interference between channels to ensure clear signal transmission.
• Power Efficiency: Designed with power-saving features for reduced power consumption in applications.

Applications

The PI3DPX1205AZLBE is ideal for a wide range of high-speed data transfer applications, including:

• High-resolution video displays and monitors
• USB hubs, docks, and high-speed data storage devices
• Thunderbolt-enabled devices for rapid data and video transfer
• Advanced consumer electronics requiring high bandwidth data transfer

Package and Quality

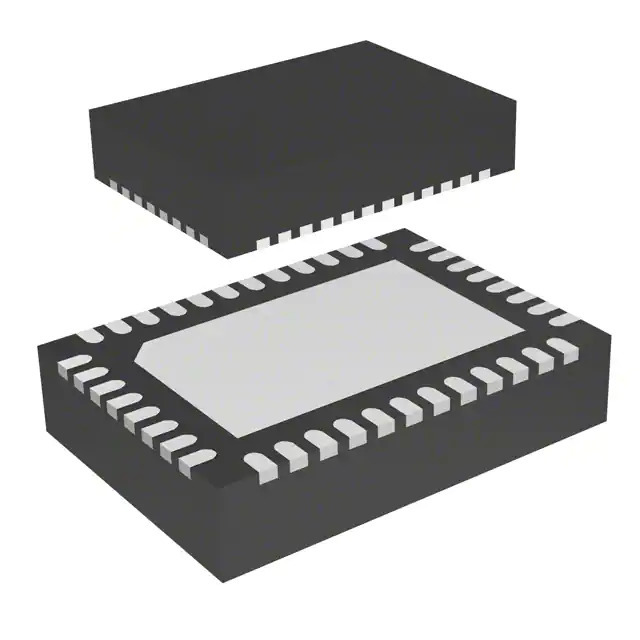

Offered in a compact 42-contact TQFN package, the PI3DPX1205AZLBE is designed for space-constrained applications without compromising performance. Diodes Incorporated ensures high manufacturing standards, providing reliability and consistency across all product lines. The PI3DPX1205AZLBE is RoHS compliant, reflecting the company's commitment to environmental responsibility.

With its combination of high-speed operation, versatility, and reliability, the PI3DPX1205AZLBE is an excellent choice for designers looking to integrate a multiplexer/demultiplexer into their next-generation digital applications.
