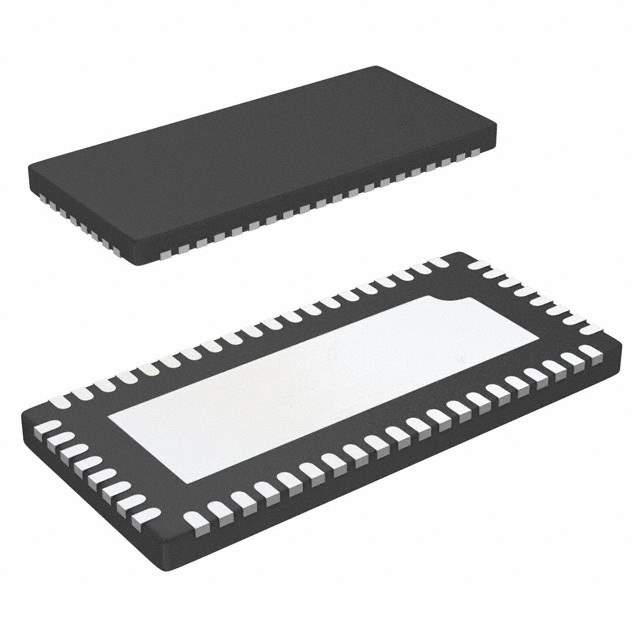

Product Overview: PI2EQX5964ZFE from Diodes Incorporated

The PI2EQX5964ZFE is a high-performance, PCIe Gen2 signal ReDriver from Diodes Incorporated designed to enhance signal integrity by performing receive equalization on deteriorated input signal followed by transmit de-emphasis, maximizing system performance. This solution is ideal for applications where signal integrity may be compromised due to increased system complexity, longer PCB traces, or the use of multiple connectors.

With its advanced capabilities, the PI2EQX5964ZFE is particularly suited for use in desktop and laptop PCs, servers, workstations, and embedded systems that require reliable performance over PCIe interfaces. Its small form factor package and low power consumption make it an excellent choice for compact and energy-efficient designs.

Key Features:

• PCI Express Gen2 Support: Fully supports PCIe 2.0 specifications, ensuring compatibility with existing PCIe systems and devices.
• Signal Conditioning: Provides programmable equalization, swing, and de-emphasis levels to optimize performance over various physical mediums.
• Low Power Consumption: Designed for energy efficiency, the PI2EQX5964ZFE helps reduce overall system power requirements.
• Automatic Rate Detection: Capable of automatically detecting and adapting to the data rate of the incoming signal without the need for external control.
• Small Footprint: Available in a compact, surface-mount package that is suitable for space-constrained applications.

Applications:

• Desktop and Laptop PCs
• Servers and Workstations
• Embedded Systems
• High-performance Computing Platforms
• Storage and Network Equipment

The PI2EQX5964ZFE's ability to restore signal quality makes it an indispensable component in systems that demand high-speed data transmission and reliability. By using this ReDriver, system designers can overcome the challenges posed by signal degradation over long PCB traces and connectors, ensuring that their products meet the high-speed performance requirements of modern computing environments.

Diodes Incorporated's commitment to quality and performance is evident in the PI2EQX5964ZFE, making it a top choice for system designers looking to enhance PCIe signal integrity in their next-generation products.
