Diodes Incorporated PI2DBS6212ZHE High-Speed Mux/Demux Switch

The PI2DBS6212ZHE from Diodes Incorporated is a state-of-the-art, high-speed, passive 2:1/1:2 multiplexer/demultiplexer switch designed for applications that require the transfer of high-speed digital or analog data. This versatile component is ideal for signal switching in USB 3.2 Gen 1, USB 2.0, and 4K/2K Ultra HD video applications, making it an excellent choice for a wide range of consumer electronics, including smartphones, tablets, laptops, and desktop computers.

Constructed with the latest technology, the PI2DBS6212ZHE offers low on-resistance and low capacitance, which ensures minimal signal attenuation and preserves signal integrity across the switch. This feature is critical for maintaining high-speed signal quality and achieving maximum system performance. Furthermore, the device is designed to operate over a wide temperature range, making it suitable for use in various environmental conditions.

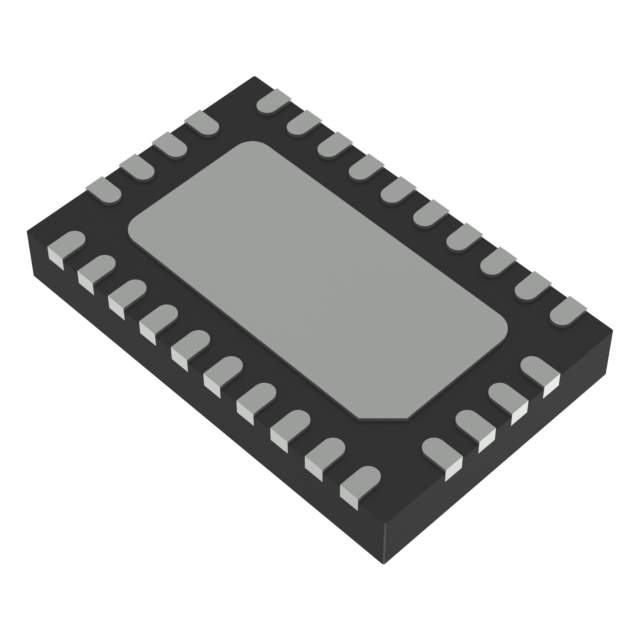

The PI2DBS6212ZHE supports high bandwidths up to 10 Gbps, which is essential for applications that demand fast data transfer rates, such as video streaming and data storage. The switch is also bidirectional, which allows for flexible usage in multiplexing and demultiplexing scenarios. Its small form factor, available in a space-saving UQFN package, makes it a practical choice for compact electronic designs where board space is at a premium.

Key features of the PI2DBS6212ZHE include:

• High-speed data transfer rates up to 10 Gbps
• Low on-resistance and low capacitance for optimal signal integrity
• Compatibility with USB 3.2 Gen 1, USB 2.0, and 4K/2K Ultra HD video standards
• Wide operating temperature range for use in diverse environments
• Compact UQFN package for space-constrained applications
• Simple control interface for ease of use

With its robust design and high-performance capabilities, the PI2DBS6212ZHE is a reliable choice for designers looking to enhance their system's data handling capabilities without compromising on space or signal quality. Diodes Incorporated's commitment to quality ensures that this component meets the high standards required for advanced digital applications.
