The P6SMAJ20ADF-13 from Diodes Incorporated is a robust surface-mount Transient Voltage Suppressor (TVS) designed to protect sensitive electronic equipment from voltage transients induced by system load dump and other transient voltage events. This TVS diode is specifically engineered to safeguard components which are susceptible to electrostatic discharge (ESD) and electrical fast transients (EFT), making it an ideal choice for a wide range of applications including automotive systems, industrial controls, and consumer electronics.

Key Features:

• Transient Protection: The device is capable of clamping and dissipating high-energy transients to prevent damage to the protected component. It can handle 600W peak pulse power dissipation for a 10/1000μs waveform.
• Breakdown Voltage: It features a stand-off voltage of 20V, with a minimum breakdown voltage of 22.2V, ensuring reliable operation under surge conditions.
• Low Capacitance: With its low capacitance design, the P6SMAJ20ADF-13 is suitable for high-speed data lines without significant signal attenuation.
• High Surge Capability: This TVS diode provides a high surge capability, which is critical for protecting against severe voltage spikes.

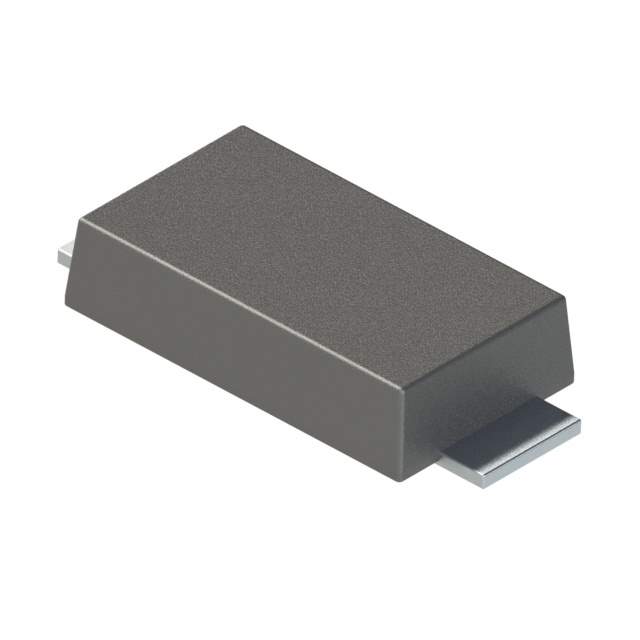

• Surface Mount Package: The device comes in the DO-214AC (SMA) package, which is optimized for automated PCB assembly processes and saves valuable board space.
• Environmental Compliance: It is compliant with the RoHS Directive 2011/65/EU and is lead-free, making it suitable for use in environmentally sensitive applications.
• Operating Temperature: The P6SMAJ20ADF-13 can operate over a wide temperature range from -55°C to +150°C, catering to applications in harsh environmental conditions.

Applications:

Due to its high surge protection capabilities and reliability, the P6SMAJ20ADF-13 is commonly used in:

• Automotive control systems
• Industrial power supplies
• Consumer electronics protection
• Portable devices
• Networking and telecommunications

With the P6SMAJ20ADF-13, Diodes Incorporated provides a compact, high-performance solution for transient voltage protection across a broad range of electronic applications, ensuring the longevity and reliability of critical components and systems.
