The MBRM5100-13 is a robust Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This high-efficiency power component is engineered to minimize power loss and optimize performance in a wide array of applications, making it an essential part of power management solutions.

Key Features

• High Surge Capability: The MBRM5100-13 is designed to withstand high surge conditions, ensuring reliability and stability in the event of transient voltage spikes.
• Low Power Loss: With its Schottky barrier design, it exhibits lower forward voltage drop compared to conventional rectifiers, resulting in reduced power loss and improved efficiency.
• High Current Capacity: This component supports a high forward current of 5A, making it suitable for high current applications.
• Low Thermal Resistance: The device's power package is optimized for low thermal resistance, allowing for better heat dissipation and cooler operation.

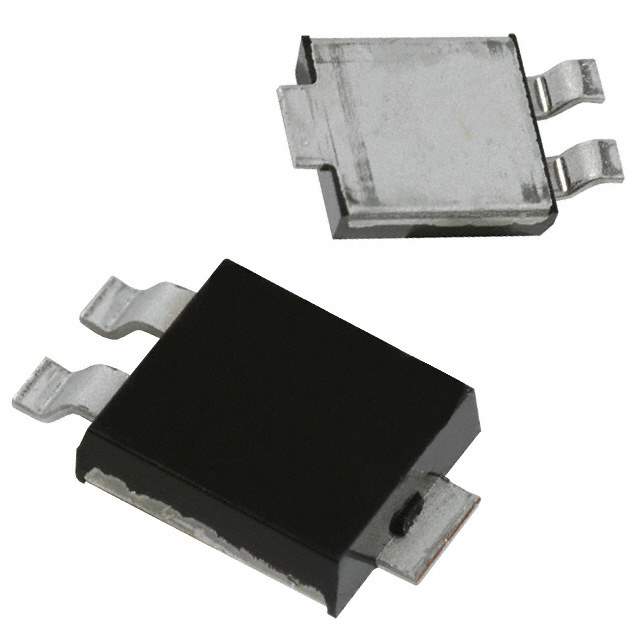

• Surface Mount Package: The MBRM5100-13 comes in a compact, surface-mount MBRM package, which is ideal for space-constrained applications and facilitates easier integration into various circuit designs.

Applications

The versatility of the MBRM5100-13 allows its use in a broad spectrum of applications, including but not limited to:

• Power supply units
• DC-DC converters
• Automotive applications
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection

Specifications

Parameter Value Maximum Repetitive Reverse Voltage (V<sub>RRM) 100V Average Rectified Forward Current (I<sub>AV) 5A Peak Forward Surge Current (I<sub>FSM) 150A Operating Junction Temperature Range -55°C to +150°C

In summary, the Diodes Incorporated MBRM5100-13 Schottky barrier rectifier is a high-performance, reliable component suitable for a variety of power conversion and management applications. Its compact design, high efficiency, and thermal resilience make it a top choice for designers and engineers in the electronics industry.
