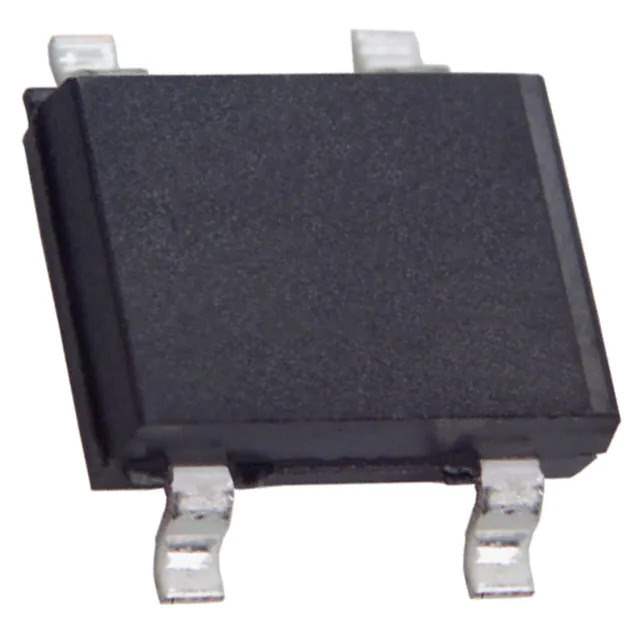

The DF1508S is a high-quality bridge rectifier component manufactured by Diodes Incorporated, a leading company in the semiconductor market. This device is designed to efficiently convert an alternating current (AC) input into a direct current (DC) output, which is a critical function in many electronic applications. The DF1508S stands out for its robust construction and reliable performance, making it a preferred choice for engineers and designers across various industries.

Key Features

• High Current Capability: With a maximum average forward rectified current of 1.5A, the DF1508S can handle a significant amount of current, suitable for a wide range of applications.
• High Surge Current Capability: This bridge rectifier is capable of withstanding high surge currents, ensuring durability and reliability during sudden voltage spikes.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances its efficiency by minimizing power loss during operation.
• High Reverse Voltage: Rated at 800V peak reverse voltage, the DF1508S is designed to withstand high reverse voltages without failure, offering protection against reverse voltage transients.
• Compact Package: Encased in a DFS package, this bridge rectifier offers a compact footprint, making it ideal for space-constrained applications.
• RoHS Compliant: The DF1508S is compliant with RoHS standards, ensuring that it meets environmental regulations by avoiding the use of hazardous substances.

Applications

The DF1508S is versatile and can be used in a variety of electronic circuits and products. Common applications include:

• Power supplies
• Adapters
• Lighting systems
• Printed circuit boards (PCBs)
• Consumer electronics
• Industrial equipment

Technical Specifications

Parameter Value Max. Average Forward Rectified Current 1.5A Peak Reverse Voltage 800V Forward Voltage Drop 1.1V Operating Temperature Range -55°C to +150°C

For those in need of a reliable and efficient bridge rectifier, the Diodes Incorporated DF1508S offers an excellent balance of performance, compactness, and durability, making it an ideal choice for a multitude of electronic applications.
