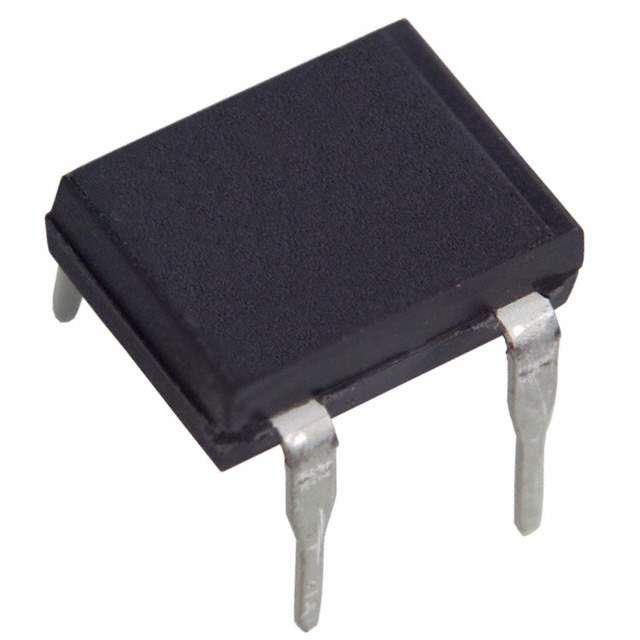

Product Overview: DF01M Bridge Rectifier

The DF01M is a highly efficient, compact, and robust bridge rectifier designed and manufactured by Diodes Incorporated, a leading company in high-quality semiconductor products. This bridge rectifier is specifically engineered to convert alternating current (AC) into direct current (DC), making it an essential component in a wide range of electronic applications.

Key Features

• Voltage Ratings: The DF01M offers a maximum repetitive peak reverse voltage of 100V, making it suitable for moderate voltage applications.
• Current Capacity: With a forward current of 1.0A, this device can handle a reasonable amount of current for its size, catering to various electronic circuits.
• High Efficiency: The low forward voltage drop and high surge overload rating contribute to the device's high efficiency, ensuring minimal energy loss during the rectification process.
• Surge Overload Rating: The DF01M can withstand a peak surge overload of 30A, providing robust protection against current spikes.
• Compact Form Factor: The miniature package allows for easy integration into a variety of electronic devices without compromising on space.

Applications

The DF01M is versatile and can be used in a multitude of applications, including:

• Power supplies
• Adapters
• Lighting systems
• Consumer electronics
• Home appliances

Technical Specifications

The device's technical specifications are as follows:

• Package Type: 4-pin DFM
• Operating Temperature Range: -55°C to +150°C
• Storage Temperature Range: -55°C to +150°C
• Mounting Type: Through Hole

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products, and the DF01M is no exception. It is constructed with reliability in mind, ensuring stable performance over its lifespan. The device is also RoHS compliant, adhering to environmental standards and regulations.

In summary, the DF01M from Diodes Incorporated is a reliable and efficient choice for designers and engineers looking for a bridge rectifier that offers a balance between performance and size. Its robust design and versatile application scope make it a valuable component in the electronics industry.
