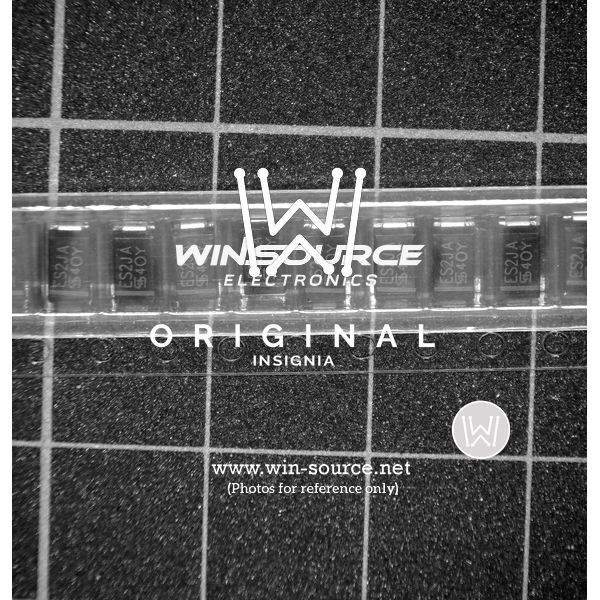

ES2JA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Win Source Part Number 260061-ES2JA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ES2JA
Introduction Date August 12, 2004
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ES2JA CAD Model

Description

ES2JA Diode

The ES2JA diode delivers efficient rectification and fast recovery, suitable for high-frequency applications. It is characterized by its compact size and robust electrical properties.

  • Reverse voltage capability: 600V
  • Forward current: 2A
  • Fast recovery: 35ns

Applications:

  • PFC pre-regulators
  • Lighting systems
  • High voltage power systems
  • Snubber circuits

Benefits:

  • Efficient performance in limited spaces
  • Suitable for high-voltage tasks
  • Stable operation across various temperatures
