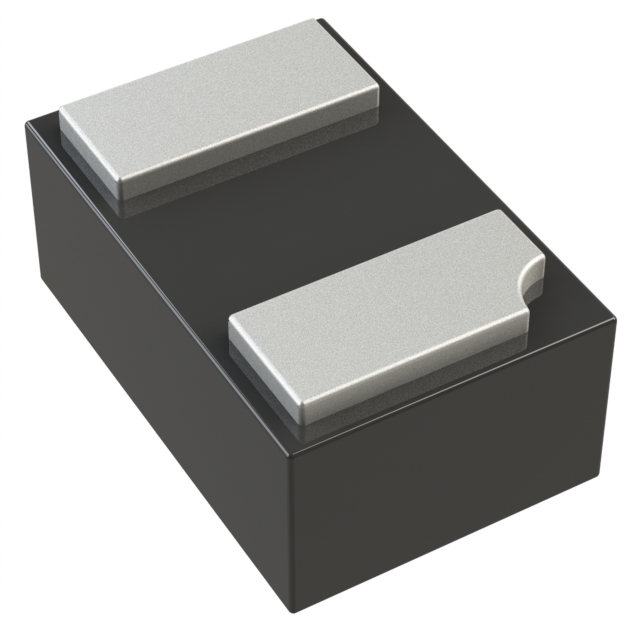

Same model may have multiple batches, images only for reference.
D8V0X1B2LPQ-7B Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D8V0X1B2LPQ-7B

Part No D8V0X1B2LPQ-7B
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description TVS DIODE 8VWM 21VC X1DFN10062
Datasheet
D8V0X1B2LPQ-7B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Diodes Incorporated
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8V (Max)
Voltage - Breakdown (Min) 9.5V
Voltage - Clamping (Max) @ Ipp 21V
Current - Peak Pulse (10/1000μs) 4A (8/20μs)
Power Line Protection No
Applications HDVI, USB
Capacitance @ Frequency 0.5pF @ 1MHz
Operating Temperature -55°C ~ 150°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Supplier Device Package X1-DFN1006-2
Base Product Number D8V0
Ultra Librarian 3D Model Ultra Librarian D8V0X1B2LPQ-7B CAD Model
