Product Overview: D5V0M2B3LP10-7 TVS Diode

The D5V0M2B3LP10-7 from Diodes Incorporated is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD). This discrete semiconductor product is a great solution for safeguarding high-speed data lines and other vulnerable circuits.

Key Features

• Low Clamping Voltage: The D5V0M2B3LP10-7 offers a low clamping voltage, which is crucial for protecting modern sensitive electronics from over-voltage without affecting their performance.
• ESD Protection: It is specifically designed to provide ESD protection up to ±30kV (air and contact discharge) as per the IEC 61000-4-2 standard, ensuring the reliability and longevity of electronic components.
• Low Leakage Current: With its low leakage current, this TVS diode helps in maintaining the energy efficiency of the application it is used in, making it suitable for battery-powered devices.

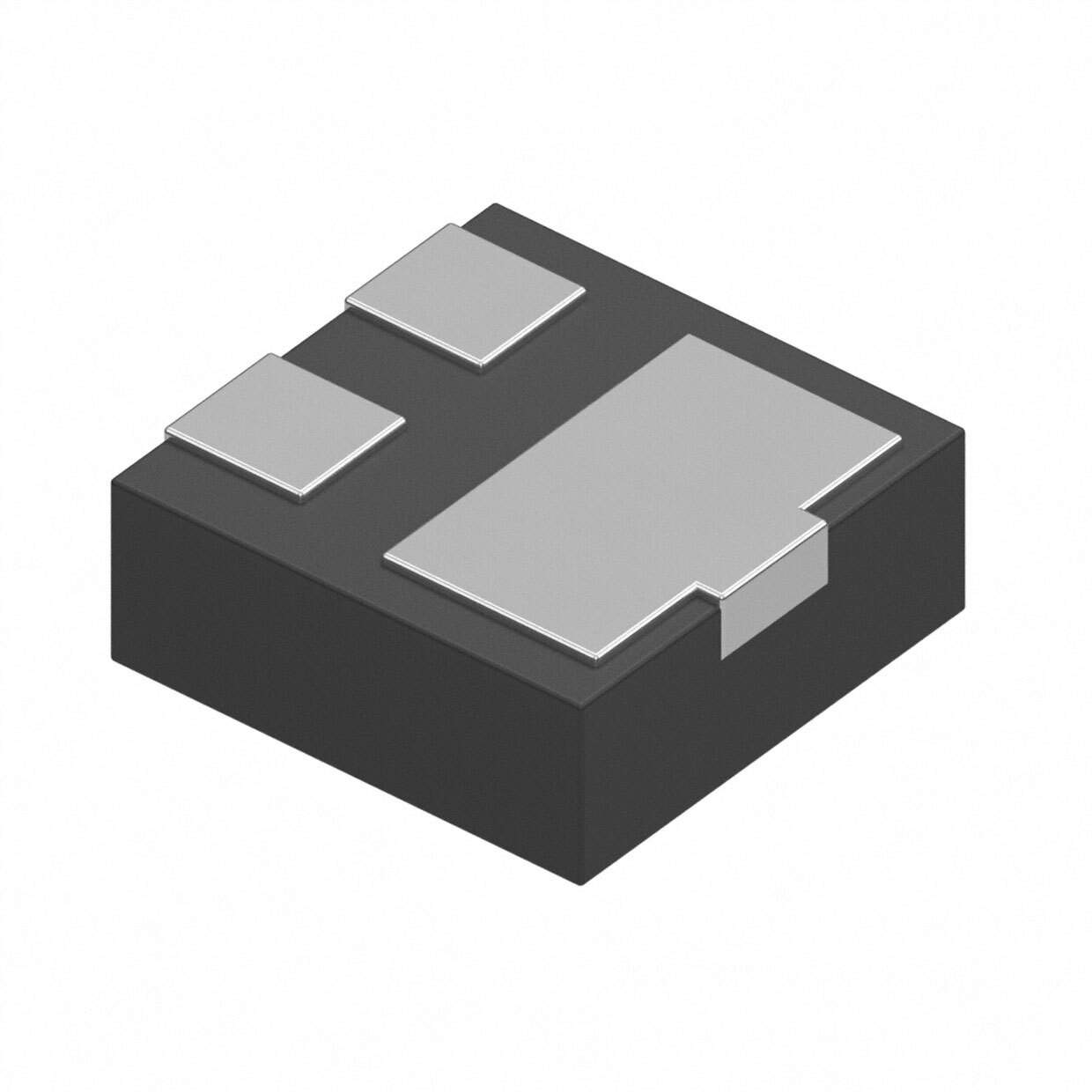

• Ultra-Small Package: The device comes in a compact X3-DFN1010-2 package, which is ideal for space-constrained applications without compromising on protection capabilities.
• RoHS Compliant: The D5V0M2B3LP10-7 is compliant with RoHS standards, meaning it is manufactured without the use of hazardous substances, making it environmentally friendly.

Applications

The D5V0M2B3LP10-7 is versatile and can be used in a wide array of applications, including:

• Portable Electronics
• Smartphones and Tablets
• Data Line Protection
• USB Interfaces and Power Ports
• Microcontroller-Based Equipment

Reliability and Performance

Diodes Incorporated has engineered the D5V0M2B3LP10-7 to meet the stringent requirements of modern electronics. The device's fast response time ensures that it reacts quickly to transient events, providing immediate protection to sensitive components. Its low dynamic resistance allows for better performance in surge protection, making it a reliable choice for critical applications.

Whether you are designing consumer electronics, communication devices, or industrial systems, the D5V0M2B3LP10-7 TVS diode from Diodes Incorporated offers superior protection in a small package, ensuring your designs are safeguarded against the damaging effects of voltage transients.
