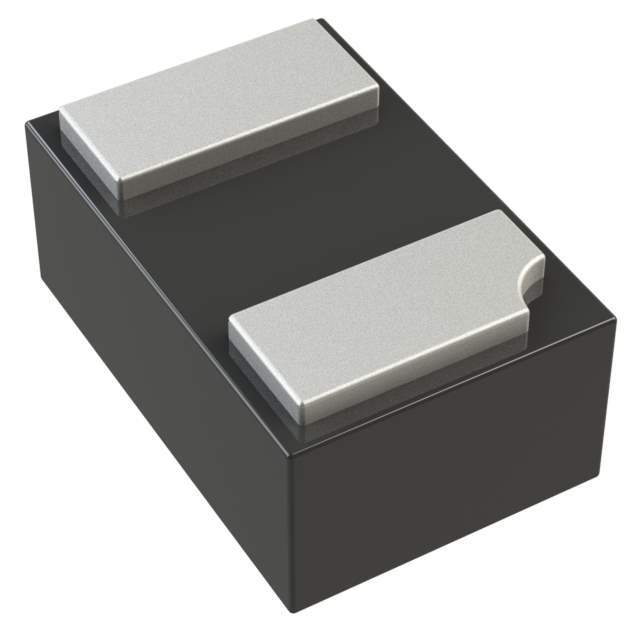

Same model may have multiple batches, images only for reference.
D24V0H1U2LP-7BDiodes Incorporated
Same model may have multiple batches, images only for reference.

D24V0H1U2LP-7B

Part No D24V0H1U2LP-7B
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description GENERAL PROTECTION PP X1-DFN1006
Datasheet
D24V0H1U2LP-7B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Circuit Protection >Transient Voltage >Suppressors (TVS) >TVS Diodes
Part Status Active
Type Zener
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25V
Voltage - Clamping (Max) @ Ipp 42V
Current - Peak Pulse (10/1000µs) 9A (8/20µs)
Power - Peak Pulse 378W
Applications General Purpose
Capacitance @ Frequency 47pF @ 1MHz
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Win Source Part Number WS1310349-D24V0H1U2LP-7B
Ultra Librarian 3D Model Ultra Librarian D24V0H1U2LP-7B CAD Model

Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications, such as cellular phones, digital cameras, and MP3 players.

• Cellular Handsets
• Portable Electronics
• Computers and Peripheral
