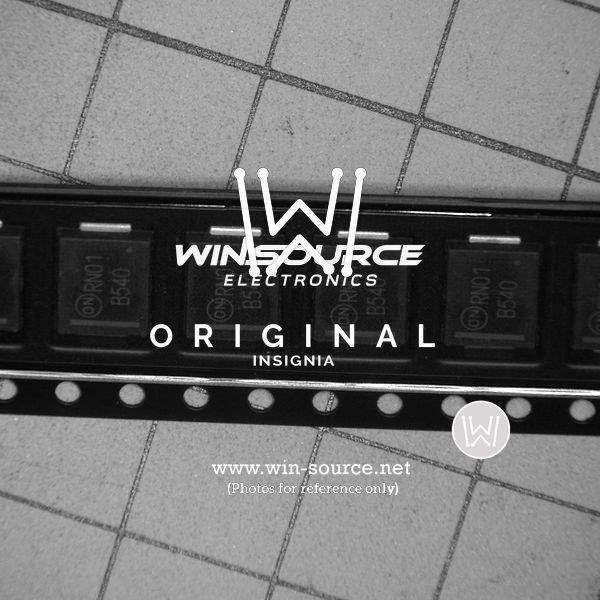

Product Overview: B540-13-F - Diodes Incorporated

The B540-13-F is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This rectifier is engineered to meet the stringent requirements of modern electronic applications, offering a perfect blend of efficiency and reliability.

Key Features

• High Current Capability: With a forward continuous current of 5A, the B540-13-F is capable of handling high current applications, making it suitable for a wide range of power management solutions.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which minimizes power loss and improves efficiency, especially important in battery-powered devices.
• High Surge Capability: Its high surge current capability ensures that the device can withstand momentary high-current events, providing robust protection for sensitive electronics.
• Thermal Performance: The B540-13-F boasts excellent thermal performance with its operating junction temperature range from -55°C to +150°C, ensuring stability and reliability across various temperature conditions.
• Lead-Free and RoHS Compliant: This product is environmentally friendly, complying with RoHS standards that restrict the use of hazardous substances in electronic equipment.

Applications

The B540-13-F is versatile and can be used in a variety of applications such as:

• Power Supply Units (PSUs)
• DC-DC Converters
• Freewheeling Diodes
• Reverse Battery Protection
• Automotive Applications
• High-Frequency Rectification

Package and Quality Assurance

Packaged in a DO-214AB (SMC) package, the B540-13-F offers a compact footprint for space-constrained applications. Quality is assured through rigorous testing and adherence to industry standards, ensuring that each unit meets Diodes Incorporated's high-quality criteria.

Conclusion

Whether for industrial, automotive, or consumer electronics, the B540-13-F Schottky barrier rectifier from Diodes Incorporated stands out with its high efficiency, reliability, and robustness, making it an excellent choice for engineers and designers looking to enhance their power management systems.
