Product Overview: AP3105RKTR-G1 from Diodes Incorporated

The AP3105RKTR-G1 is a highly integrated, high-performance PWM (Pulse Width Modulation) controller from Diodes Incorporated, designed for AC/DC switch mode power supplies. This device is ideal for a broad range of applications, including battery chargers, adapters, and off-line power supplies that demand high efficiency, low standby power, and cost-effectiveness.

With its built-in high-voltage startup circuit, the AP3105RKTR-G1 ensures a quick and energy-efficient start-up sequence, reducing the stress on system components and contributing to the longevity of the power supply design. The device features a low operating current, which significantly improves efficiency and helps in achieving low standby power requirements that are critical in modern electronic devices.

Key Features and Benefits

• High-Voltage Start-Up: This feature allows the controller to start up directly from the rectified mains voltage, reducing the number of external components required and simplifying the power supply design.
• Brown-In/Out Protection: The AP3105RKTR-G1 is equipped with brown-in/out protection, safeguarding the power supply against damaging conditions caused by under or overvoltage input.
• Frequency Modulation: To minimize electromagnetic interference (EMI), the device includes frequency modulation. This feature is particularly important in applications where EMI compliance is critical.
• Green Mode Operation: In light-load conditions, the controller enters 'Green Mode' to enhance efficiency by reducing switching losses, thus minimizing energy consumption when the power supply is not fully loaded.
• Over-Temperature Protection: The built-in over-temperature protection ensures the device operates within safe temperature limits, providing additional reliability and safety to the end application.
• Over-Voltage Protection and Over-Current Protection: These features protect the power supply and the end equipment from potential damage due to voltage or current irregularities.

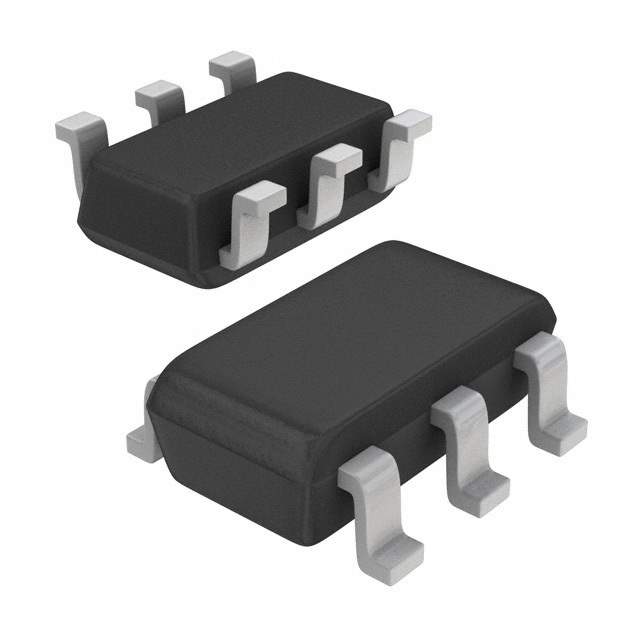

Encased in a compact SOT-26 package, the AP3105RKTR-G1 offers a space-saving solution for power supply designs while maintaining high performance and reliability. Its advanced features and integrated protections make it a versatile choice for designers looking to optimize their power supply solutions for efficiency, size, and cost.

Diodes Incorporated's commitment to quality ensures that the AP3105RKTR-G1 meets the stringent requirements of modern electronic devices, providing a reliable and efficient solution for power management applications.
