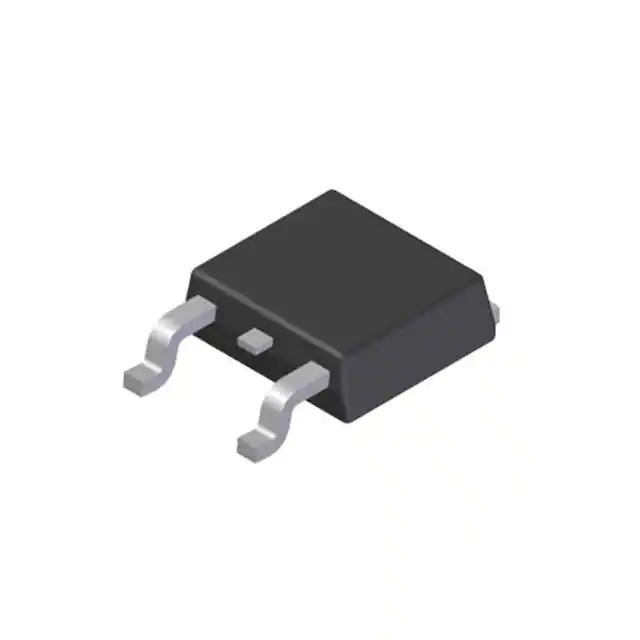

The AL5890-10D-13 is a cutting-edge, linear constant current regulator (CCR) developed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This innovative component is designed to provide a simple, efficient, and reliable solution for driving LED strings without the need for additional external components, making it an ideal choice for a wide range of lighting applications.

Key Features

• Constant Current Output: The AL5890-10D-13 delivers a stable and constant current output, ensuring consistent brightness and performance for LEDs. This feature is crucial for maintaining the color and light quality over time.
• Wide Input Voltage Range: With an input voltage range of 40V to 60V, this CCR can accommodate various power supplies, making it versatile for different LED lighting setups.
• High Power Capability: The device is capable of handling up to 10mA of regulated current, suitable for driving multiple LEDs in series.
• Thermal Protection: It includes built-in thermal shutdown protection that safeguards the device and connected LEDs from potential damage due to excessive heat.
• Compact Package: Housed in a small SOD-123 package, the AL5890-10D-13 is designed for space-constrained applications, providing powerful performance in a compact form factor.
• Energy Efficient: The high efficiency of the AL5890-10D-13 minimizes power loss and heat generation, resulting in lower energy consumption and extended product life.

Applications

The AL5890-10D-13 is versatile and can be used in a variety of applications, including but not limited to:

• LED lighting
• Architectural lighting
• Decorative and mood lighting
• Signage and backlighting
• Automotive interior and exterior lighting
• Commercial and residential lighting

Summary

In summary, the AL5890-10D-13 from Diodes Incorporated represents a robust, efficient, and user-friendly solution for driving LED arrays. Its combination of constant current regulation, thermal protection, and a wide input voltage range, all in a compact package, makes it an excellent choice for designers looking to enhance the performance and reliability of their LED lighting systems.
