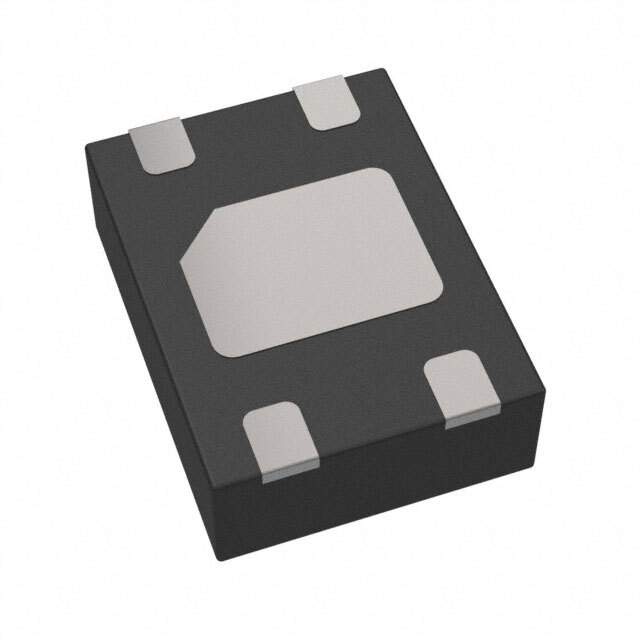

The AH3360-FA-7 from Diodes Incorporated is a versatile and high-performance unipolar Hall effect switch that is designed to meet the needs of a wide range of applications. This compact and energy-efficient sensor is ideal for consumer electronics, home appliances, industrial equipment, and automotive systems, where reliable and precise detection of magnetic fields is crucial.

Key Features

• Operating Voltage: The device operates within a supply voltage range of 3V to 28V, making it suitable for various electronic circuits and battery-powered applications.
• High Sensitivity: With its unipolar sensing capability, it can accurately detect the presence of a magnetic field and distinguish between the north and south poles.
• Low Power Consumption: The AH3360-FA-7 is designed for energy efficiency, which helps extend battery life in portable devices.
• Chopper Stabilized Design: This feature ensures temperature stability and minimizes the switch point drift, providing reliable performance over a wide temperature range.
• Open Drain Output: The open-drain output configuration allows for easy interfacing with other circuitry and provides design flexibility.
• Robust Package: Enclosed in a small and robust SOT-23 package, the AH3360-FA-7 is suitable for space-constrained applications while providing excellent durability.

Applications

The AH3360-FA-7 is a perfect choice for applications requiring accurate and dependable magnetic field detection. It is commonly used in:

• Position and speed sensing in motors and fans
• Contactless switches in consumer electronics
• Proximity detection in security systems
• Fluid level detection in industrial control systems
• Automotive applications including gear and clutch position sensing

Product Specifications

With its robust design and reliable performance, the AH3360-FA-7 from Diodes Incorporated is an excellent choice for designers looking for a high-quality Hall effect switch.
