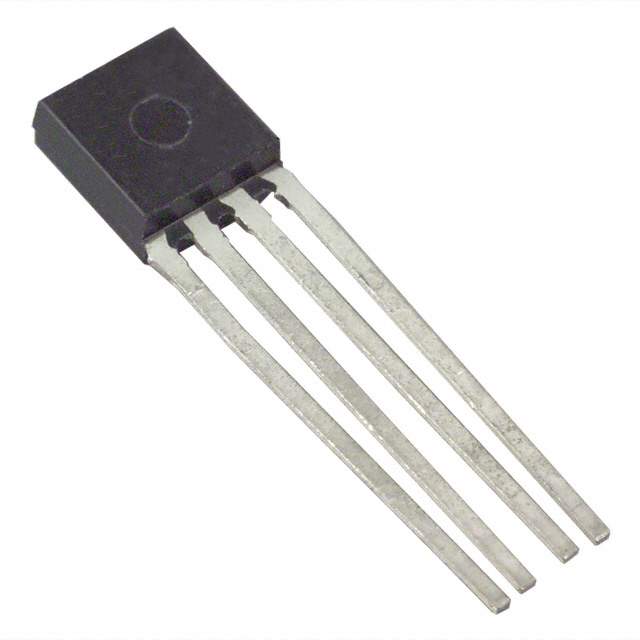

The AH291-PG-B from Diodes Incorporated is a high-performance, precision Hall-effect latch designed for a wide range of applications. This device features a bipolar latch operation, which means it operates with both north and south poles of a magnet. It is particularly suitable for use in speed detection, revolution counting, and position sensing applications.

Key Features:

• Supply Voltage Range: The AH291-PG-B operates on a supply voltage range of 3.5V to 20V, making it versatile for various electronic applications.
• High Sensitivity: With its built-in Hall element, it offers high magnetic sensitivity, ensuring accurate and reliable switching behavior.
• Chopper Stabilized: The inclusion of chopper-stabilized technology helps to suppress the offset drift and temperature drift, providing a stable operation over the entire temperature range.
• Output Type: It features an open-drain output, which allows for easy interfacing with other circuitry and provides the flexibility to connect a pull-up resistor to the desired voltage level.
• Temperature Range: The device can operate over a wide temperature range from -40°C to +85°C, suitable for industrial and automotive environments.
• Package Type: Packaged in a small and compact SIP-3 (Single In-line Package), the AH291-PG-B is ideal for space-constrained applications.
• Robust Protection: It includes protection features such as reverse battery protection, output short-circuit protection, and Zener clamp which protects against overvoltage conditions.

Applications:

The AH291-PG-B is designed for a variety of applications, including:

• Brushless DC motor commutation
• Rotary encoders
• Flow meters
• Speed and position sensing in automotive systems
• Home appliances and consumer electronics

With its reliable performance and robust design, the Diodes Incorporated AH291-PG-B is an excellent choice for designers looking for a versatile Hall-effect latch solution. Its combination of features ensures it can meet the requirements of even the most demanding applications.
