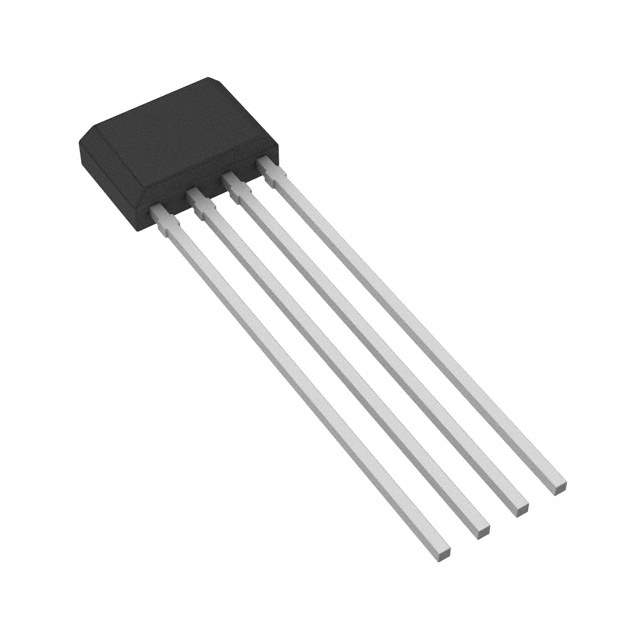

The AH266Z4-BG1 from Diodes Incorporated is a high-performance Hall Effect latch IC that is designed for a wide range of applications requiring accurate and reliable magnetic sensing. This advanced sensor is housed in a compact package, making it suitable for space-constrained applications while providing robust performance.

Key Features

• High Sensitivity: The AH266Z4-BG1 features a highly sensitive Hall Effect sensor that can detect magnetic fields with great accuracy, ensuring precise operation in various applications.
• Wide Operating Voltage Range: With an operating voltage range of 3.5V to 20V, this device is versatile and can be used in a broad spectrum of electronic circuits.
• Chopper Stabilized Design: The inclusion of a chopper stabilized design enhances stability, reduces signal drift, and improves accuracy over temperature variations.
• High-Temperature Operation: Capable of operating in environments with temperatures ranging from -40°C to 85°C, the AH266Z4-BG1 is suitable for use in harsh conditions.
• Output Polarity: The device provides a digital output that indicates the presence of a magnetic field with a particular polarity, making it easy to integrate into digital systems.
• Low Power Consumption: Designed for energy efficiency, this Hall Effect latch IC consumes low power, making it ideal for battery-powered applications.

Applications

The AH266Z4-BG1 is ideal for a variety of applications, including but not limited to:

• Brushless DC (BLDC) motor control
• Position and speed sensing
• Rotary encoders
• Flow meters
• Contactless switches

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the AH266Z4-BG1 is no exception. It is manufactured using high-quality materials and subjected to rigorous testing to ensure it meets the industry standards for reliability and performance.

Conclusion

Whether for industrial, automotive, or consumer electronics, the AH266Z4-BG1 from Diodes Incorporated stands out as a reliable and efficient solution for magnetic field detection. Its high sensitivity, wide operating voltage range, and low power consumption make it an excellent choice for designers looking to incorporate a Hall Effect latch into their systems.
