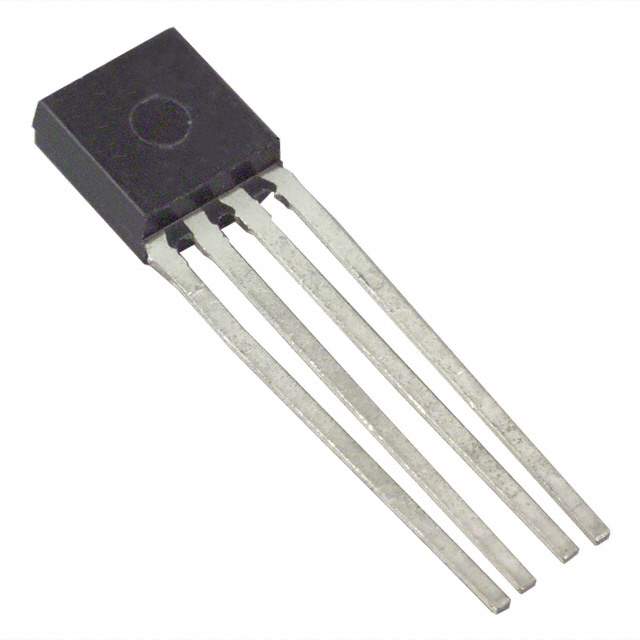

The AH266K-PG-B-B is a high-performance Hall Effect Latch produced by Diodes Incorporated, a leading manufacturer in the semiconductor market. This device is designed for a wide range of applications, from industrial to consumer electronics, where accurate and reliable magnetic sensing is crucial.

Key Features

• High Sensitivity: The AH266K-PG-B-B is equipped with a sensitive Hall Effect sensor that can detect magnetic fields effectively, ensuring precise operation in various applications.
• Operating Voltage Range: This latch operates within a voltage range of 3.5V to 20V, accommodating a broad spectrum of power supplies and making it versatile for different electronic circuits.
• Output Type: It features a bipolar latch output, which means it can detect both north and south pole magnetic fields and provide a corresponding output signal.
• Temperature Range: The device is designed to operate in a wide temperature range, making it suitable for harsh environments.
• Package Type: Housed in a PG-B-B package, the AH266K-PG-B-B is compact and suitable for space-constrained applications.

Applications

The AH266K-PG-B-B Hall Effect Latch is ideal for various applications, including:

• Brushless DC motor commutation
• Position and speed sensing
• Magnetic encoding
• Flow meters
• Proximity detection

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The AH266K-PG-B-B is built with stringent quality control measures, ensuring reliability and performance consistency. Its robust design ensures a long operational life, making it a dependable choice for critical sensing applications.

Conclusion

In conclusion, the AH266K-PG-B-B Hall Effect Latch from Diodes Incorporated is a versatile and reliable solution for designers who require precise magnetic field detection. Its high sensitivity, wide operating voltage range, and robust design make it an excellent choice for a variety of industrial and consumer electronic applications.
