Same model may have multiple batches, images only for reference.

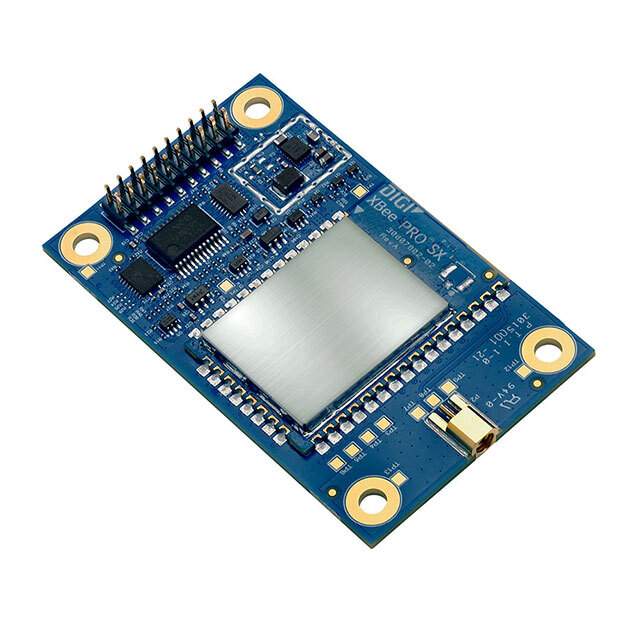

XTP9B-DPM-001 Real Image
Same model may have multiple batches, images only for reference.

XTP9B-DPM-001

Part No XTP9B-DPM-001
Manufacturer Digi International
Catalog RF Transceiver Modules
Description RF TXRX MOD ISM < 1GHZ MMCX SMD / General ISM < 1GHz Transceiver Module 902MHz ~ 928MHz Antenna Not Included, MMCX Surface Mount
Datasheet
XTP9B-DPM-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Digi
Series XTend®
Package Tray
RF Family/Standard General ISM < 1GHz
Modulation FSK
Frequency 902MHz ~ 928MHz
Data Rate 125kbps
Power - Output 30dBm
Sensitivity -110dBm
Serial Interfaces UART
Antenna Type Antenna Not Included, MMCX
Voltage - Supply 2.8V ~ 5.5V
Current - Receiving 35mA
Current - Transmitting 710mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number XTP9
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
California Prop 65 Warning Information
Win Source Part Number 1339065-XTP9B-DPM-001
Ultra Librarian 3D Model Ultra Librarian XTP9B-DPM-001 CAD Model

Description

The XTend XTP9B-DPM-001 from Digi is an RF and wireless RF transceiver module designed for general ISM < 1GHz.

  • Frequency: 902MHz ~ 928MHz
  • Data Rate: 125kbps
  • Package: Module
  • Power Output: 30dBm
  • Sensitivity: -110dBm
  • Temperature Range: -40°C to 85°C
  • Antenna Connector Type: Not Included MMCX
  • Applications: UART
  • Availability: Currently Available
