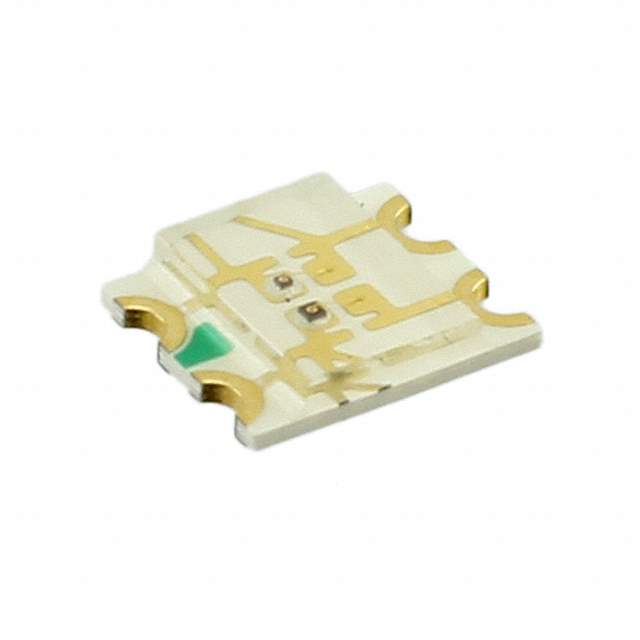

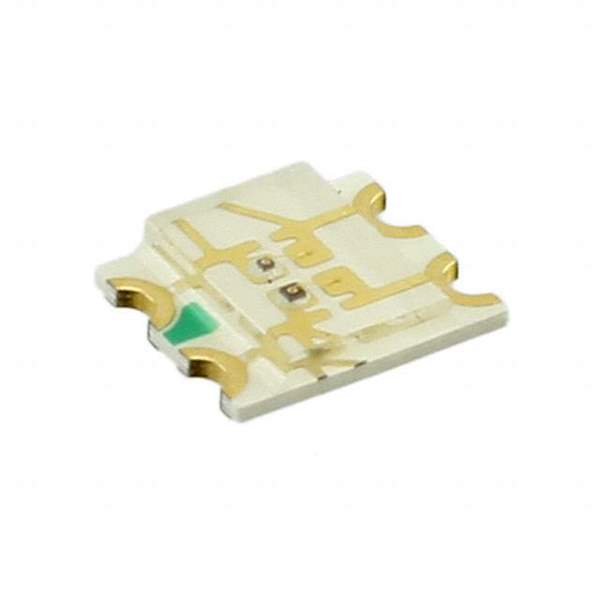

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Dialight
Packaging Reel - TR
Color Red, Yellow
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd Red, 135mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.30mm
Voltage - Forward (Vf) (Typ) 2.2V Red, 2V Yellow
Current - Test 20mA Red, 20mA Yellow
Viewing Angle 140°
Mounting Surface Mount
Wavelength - Dominant 640nm Red, 590nm Yellow
Case / Package 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 3.20mm L x 2.70mm W
Height (Max) 0.70mm
Base Product Number 5988660
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 350-2085-1,350-2085-2,598-8660-207F,350-2085-6
Standard Package 3,000
Win Source Part Number 1331748-5988660207F
Ultra Librarian 3D Model Ultra Librarian 5988660207F CAD Model

Description

The Dialight 1331748-5988660207F is an LED indication - discrete that belongs to the Optoelectronics category.

  • Package: reel - TR
  • Millicandela Rating: 50mcd red and 135mcd yellow
  • Voltage - Forward (Vf) (Typ): 2.2V red and 2V yellow
  • Current - Test: 20mA red and 20mA yellow
  • Viewing Angle: 140 degrees
  • Lens Style: rectangle with flat top
  • Lens Size: 2.00mm x 1.30mm
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8541.41.0000
  • Other Part Numbers: 350-2085-1, 350-2085-2, 598-8660-207F, and 350-2085-6

It is also ROHS3 compliant.
