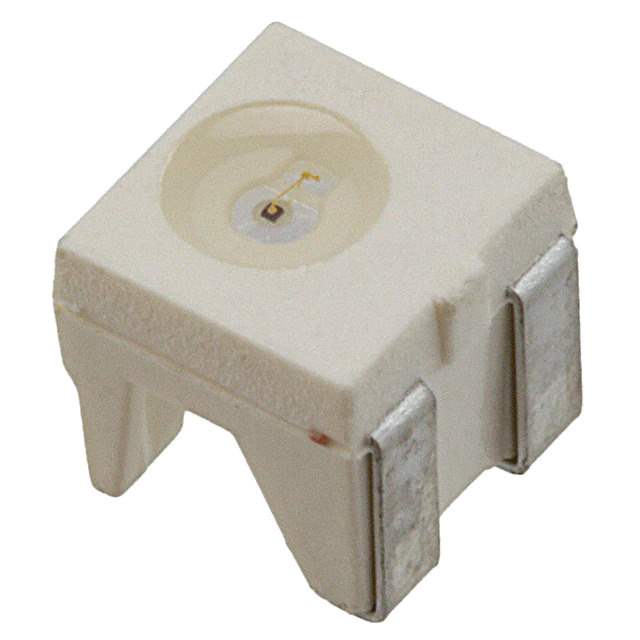

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Dialight
Series 597
Package Tape & Reel
Product Status Active
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 590mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 587nm
Wavelength - Peak 594nm
Package / Case 2-SMD, Boomerang
Supplier Device Package 1616
Size / Dimension 4.20mm L x 3.80mm W
Height (Max) 4.20mm
Base Product Number 5972201
Standard Package 2,000 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 856673-5972201815F
Ultra Librarian 3D Model Ultra Librarian 5972201815F CAD Model

Description

The 856673-5972201815F is a surface mount LED indication component from the 597 series by Dialight.

  • Lens Color: Yellow
  • Lens Transparency: Clear
  • Viewing Angle: 120 degrees
  • Lens Style: Round with Flat Top
  • Lens Size: 2.40mm diameter
  • Millicandela Rating: 590mcd
  • Peak Wavelength: 594nm
  • Operating Voltage: 2.1V
  • Operating Current: 20mA
  • Package: Tape and Reel
  • Standard Package: 2,000 pcs
  • Application: Surface Mount
