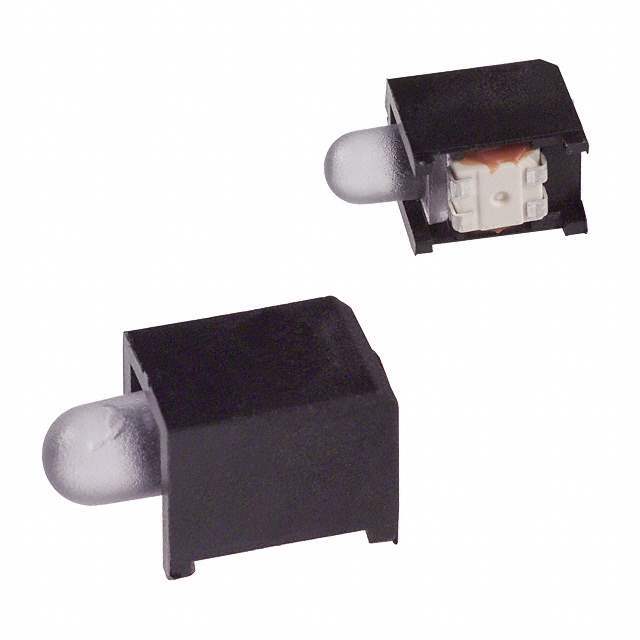

5912301013NF Dialight
Same model may have multiple batches, images only for reference.

5912301013NF

Part No 5912301013NF
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED CBI 2.85MM GRN SMD RA
Datasheet
5912301013NF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Dialight
Part Status Active
Color Green
Wavelength - Peak 572nm
Configuration Single
Current 20mA
Millicandela Rating 15mcd
Viewing Angle 40°
Lens Style Round with Domed Top
Lens Size 2.85mm Dia
Voltage Rating 2V
Mounting Type Surface Mount, Right Angle
Ultra Librarian 3D Model Ultra Librarian 5912301013NF CAD Model

Description

LED Circuit Board Indicator LED Circuit Board Indicator Single Green 2V 20mA Round with Domed Top 2.85mm Dia Surface Mount, Right Angle
