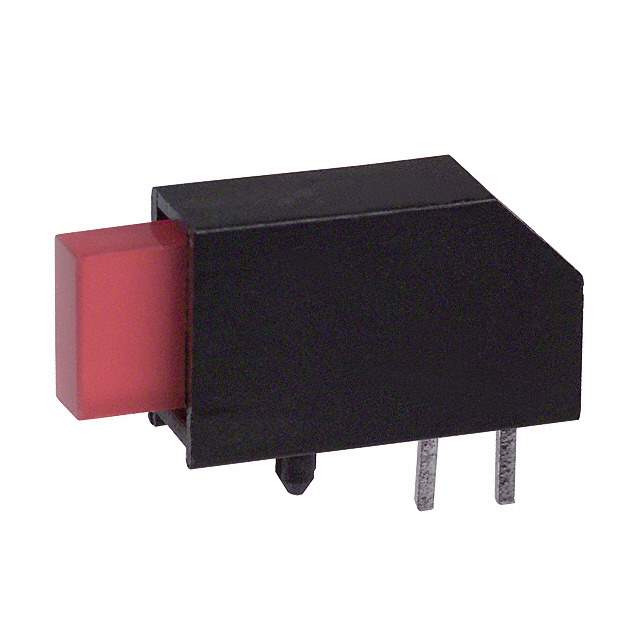

566-0406F Real Image
Same model may have multiple batches, images only for reference.

566-0406F

Part No 566-0406F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description 566 Series Red 2 x 5 mm 140° Diffused 7.6 mcd 2 V LED Circuit Board Indicator
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Red
Current 20 mA
Element Configuration Single
Forward Current 20 mA
Forward Voltage 2 V
Height 7.11 mm
Illumination Color Red
Lead Free Lead Free
Length 15.1 mm
Lens Style Diffused, Tinted
Luminous Intensity 7.4 mcd
Max Operating Temperature 100 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of LEDs 1
Number of Pins 2
Packaging Bulk
RoHS Compliant
Schedule B 8541402000, 8541402000
Viewing Angle 140 °
Voltage Rating 2 V
Voltage Rating (DC) 2 V
Wavelength 635 nm
Width 3.68 mm
Win Source Part Number 1208168-566-0406F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 566-0406F CAD Model

Description

The Dialight 1208168-566-0406F is a through-hole red LED with a diffused, tinted lens style and a luminous intensity of 7.4mcd.

  • Mounting Type: Through-hole
  • LED Color: Red
  • Lens Style: Diffused, Tinted
  • Luminous Intensity: 7.4mcd
  • Voltage Rating: 2V
  • Current: 20mA
  • Category: Optics - LEDs - Light Pipes
  • Popularity: Medium
  • Package: Bulk
  • Number of Pins: 2
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Illumination Color: Red
