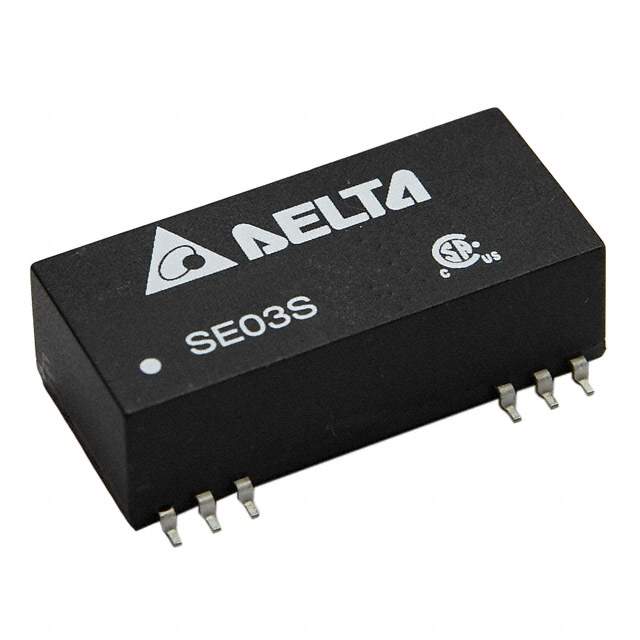

The SE03S/D (3W) isolated module is a power supply board mount DC DC converter that comes with SCP and UVLO features.

• Application: ideal for medical applications
• Standard Package: 10
• Mounting Type: SMD (SMT)
• Power Output: 3Watts
• Voltage Isolation: 1.5 kV
• Outputs: two outputs with a maximum output current of 100mA each
• Input Voltage: ranges from 18V to 36V
• Output Voltage: output voltage for the first output is 15V, and the second output is -15V
• Efficiency: 82%
• Package: 24-SMD module with 12 leads
• Operating Temperature Range: between -40°C to 71°C
• Dimension: 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
• MSL Level: 2 (1 Year)
• REACH Status: REACH Unaffected
• HTSUS: 8504.40.9580
• Manufacturer: Delta Electronics
• Other Names: 941-1358
• Base Product Number: SE03D
