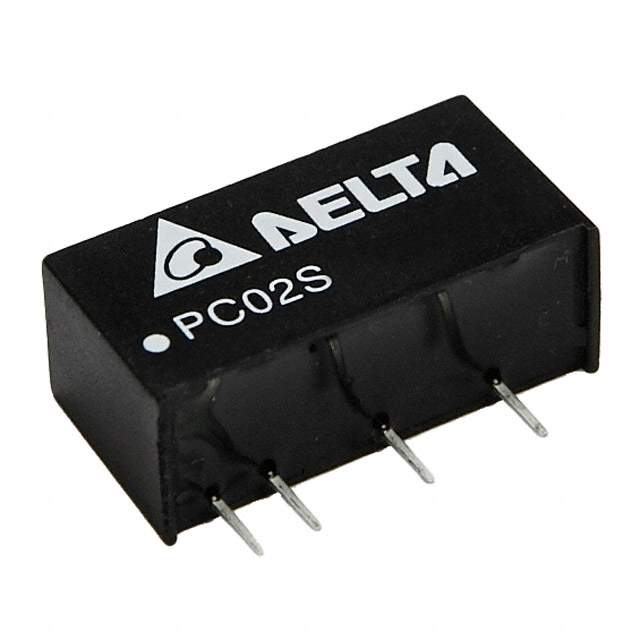

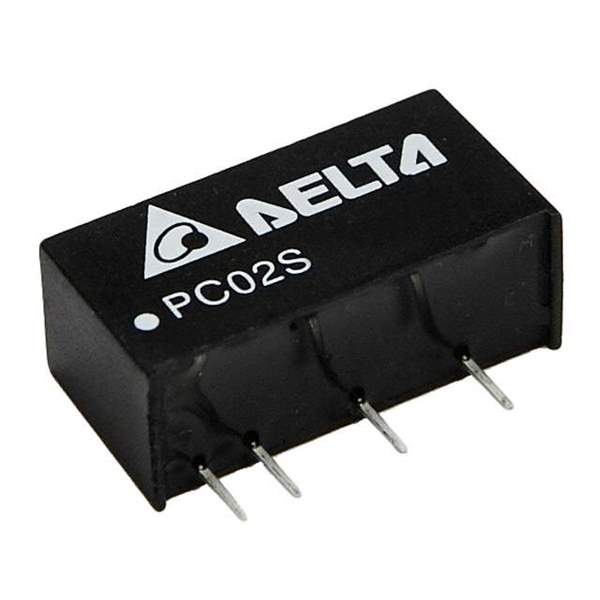

Same model may have multiple batches, images only for reference.

PC02D0515A

Get a Quote

Part No	PC02D0515A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 66mA, 66mA 4.5V - 5.5V Input
Datasheet	PC02D0515A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Delta Electronics
Series	PC02S/D (2W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	66mA, 66mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	79%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number	PC02D
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340224-PC02D0515A
Ultra Librarian 3D Model	Ultra Librarian PC02D0515A CAD Model

Alternative Products

Description

The Delta Electronics PC02D0515A is an isolated module DC-DC converter with a power rating of 2W.

Outputs: two outputs with a voltage isolation of 1kV
Size: 0.77 inches in length, 0.30 inches in width, and 0.40 inches in height
Current Output: 66mA for both outputs
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 15V for the first output and for the second output is -15V
Efficiency: 79%
Operating Temperature Range: -40°C to 85°C
Mounting: available in a through-hole mounting package
