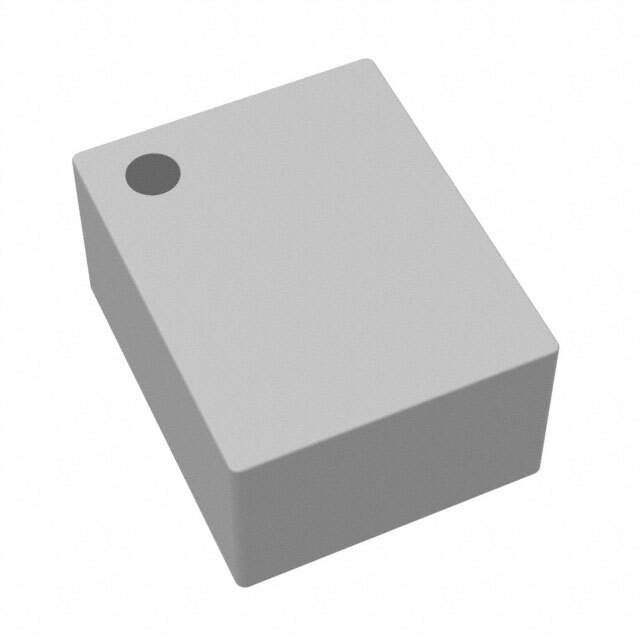

Same model may have multiple batches, images only for reference.

HTEX20161T-4R7MDR

Name: HTEX20161T-4R7MDR
Brand: Delta Electronics
SKU: 1337195
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HTEX20161T-4R7MDR
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 1.5A 250MOHM SMD / 4.7 µH Shielded Inductor 1.5 A 250mOhm Max 0806 (2016 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Delta Electronics/Cyntec
Series	HTEX20161T
Package	Tape & Reel
Material - Core	Metal
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	1.5 A
Current - Saturation (Isat)	1.7A
Shielding	Shielded
DC Resistance (DCR)	250mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
Base Product Number	HTEX20161
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1337195-HTEX20161T-4R7MDR
Ultra Librarian 3D Model	Ultra Librarian HTEX20161T-4R7MDR CAD Model

Alternative Products

Description

The Delta Electronics/Cyntec HTEX20161T-4R7MDR is a fixed inductor with a packaging of tape & reel.

Packaging: Tape & Reel (TR)
Shielding: Shielded
Size / Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Inductance: 4.7 µH
Standard Package: 3,000
Mounting Type: Surface Mount
Tolerance: ±20%
Material - Core: Metal
DC Resistance (DCR): 250mOhm Max
Supplier Device Package: 0806
Operating Temperature: -55°C ~ 125°C
