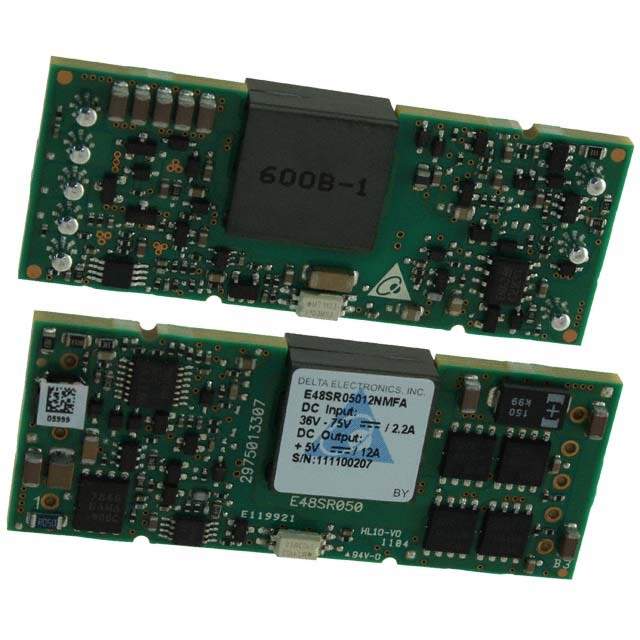

E48SR12007NRFA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi E48SR (66W)
Package Tray
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 7A
Power (Watts) 84 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 115°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.33" H (58.4mm x 22.9mm x 8.4mm)
Control Features Enable, Active Low
Base Product Number E48SR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1001
Standard Package 21
Win Source Part Number 1190923-E48SR12007NRFA
Ultra Librarian 3D Model Ultra Librarian E48SR12007NRFA CAD Model

Description

This electronic component is a product of Delta Electronics.

  • Manufacturer: Delta Electronics
  • Type: DC DC Converter
  • Series: Delphi E48SR (66W)
  • Type: Isolated Module
  • Features: Remote On/Off, OCP, OTP, OVP, UVLO
  • Package: Tray
  • Application: ITE (Commercial)
  • Standard Package: 21
  • Power: 84 W
  • Control Features: Enable, Active Low
  • Voltage Isolation: 2.25 kV
  • Outputs: 1
  • Current Output (max): 7A
  • Voltage Input (min): 36V
  • Voltage Input (max): 75V
  • Voltage Output 1: 12V
  • Efficiency: 92%
  • Mounting Type: Through Hole
  • Package/Case: 8-DIP Module, 1/8 Brick
  • Temperature Range: -40°C ~ 115°C
