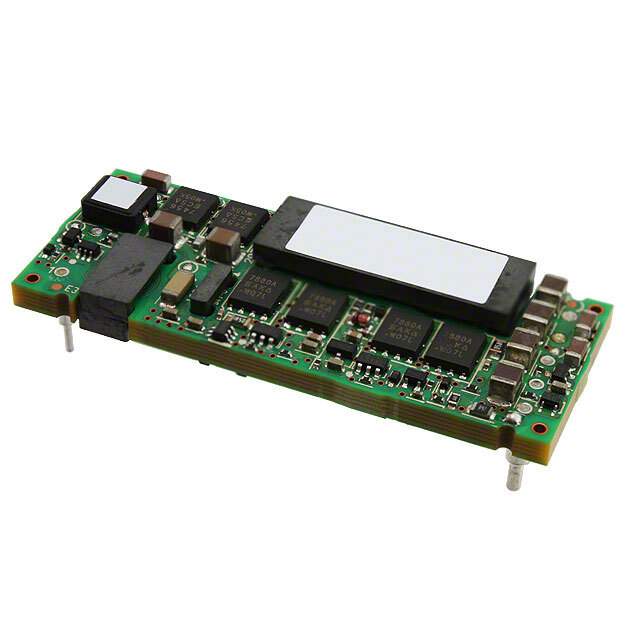

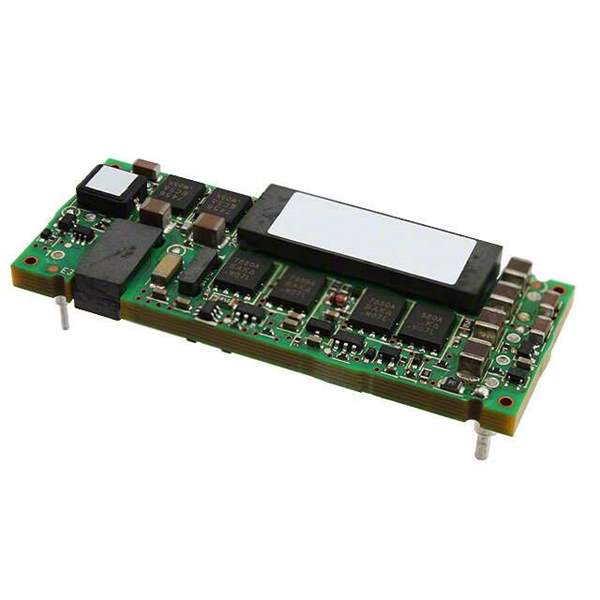

E48SH12010NRFA Real Image
Same model may have multiple batches, images only for reference.

E48SH12010NRFA

Part No E48SH12010NRFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 120W  /  Isolated Module DC DC Converter 1 Output 12V 10A 36V - 75V Input
Datasheet
E48SH12010NRFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi E48SH (120W)
Package Tray
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 10A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 123°C
Efficiency 93.1%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.37" H (58.4mm x 22.9mm x 9.4mm)
Control Features Enable, Active Low
Base Product Number E48SH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1040
Standard Package 21
Win Source Part Number 1195459-E48SH12010NRFA
Ultra Librarian 3D Model Ultra Librarian E48SH12010NRFA CAD Model

Description

The Delta Electronics Delphi E48SH (120W) is a power supply component that is designed for board mount DC-DC converters from Delta Electronics.

  • Module Type: Isolated
  • Features: Remote on/off, OCP, OTP, OVP, UVLO
  • Package: Tray
  • Application: ITE (Commercial)
  • Standard Package: 21
  • Power Output: 120 watts
  • Voltage Isolation: 2.25 kV
  • Output: Single
  • Maximum Output Current: 10A
  • Input Voltage Range: 36V to 75V
  • Voltage Output: 12V
  • Efficiency: 93.1 percent
  • Package/Case: 8-DIP Module, 1/8 Brick
  • Temperature Range: -40°C to 123°C
