Same model may have multiple batches, images only for reference.

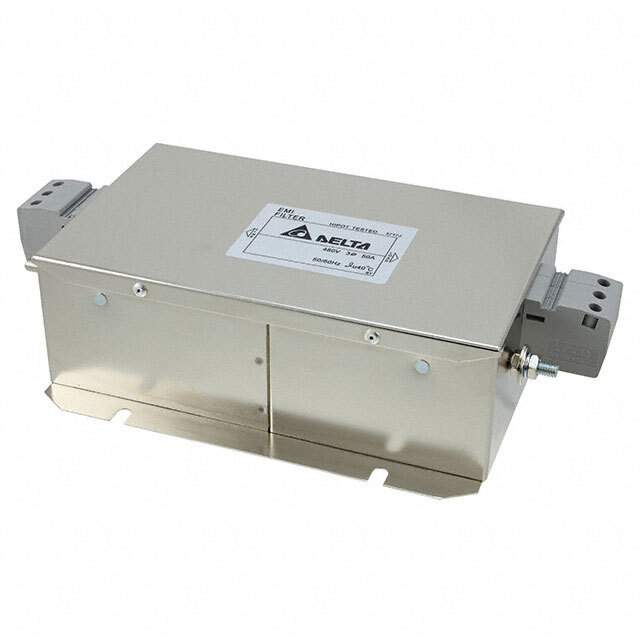

36TDT2 Real Image
Same model may have multiple batches, images only for reference.

36TDT2

Part No 36TDT2
Manufacturer Delta Electronics
Catalog Power Line Filter Modules
Description LINE FILTER 480VAC CHASSIS MOUNT / Three Phase (Delta) EMC/EMI Line Filter 480VAC 50/60Hz Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr Delta Electronics
Series TDT
Package Box
Filter Type Three Phase (Delta)
Configuration Single Stage
Voltage - Rated AC 480V
Frequency - Operating 50/60Hz
Applications General Purpose
Mounting Type Chassis Mount
Termination Style Terminal Block
Inductance 1.3mH
Standard Package 5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1337292-36TDT2
Ultra Librarian 3D Model Ultra Librarian 36TDT2 CAD Model

Description

Delta Electronics has an electronic component with the Win Source Part Number 1337292-36TDT2.

  • Filter Type: Three Phase (Delta)
  • Inductance: 1.3mH
  • Voltage Rated AC: 480V
  • Frequency Operating: 50/60Hz
  • Configuration: Single Stage
  • Termination Style: Terminal Block
