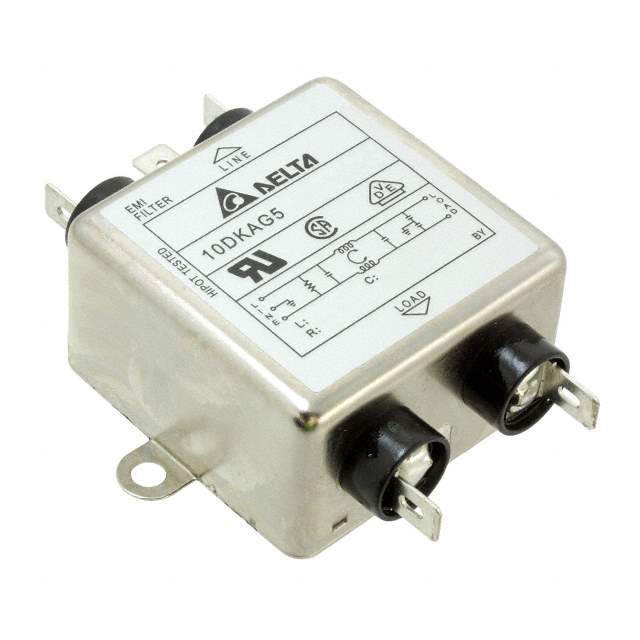

10DKAG5 Real Image
Same model may have multiple batches, images only for reference.

10DKAG5

Part No 10DKAG5
Manufacturer Delta Electronics
Catalog Power Line Filter Modules
Description GENERAL PURPOSE FILTERS
Datasheet
10DKAG5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Delta Electronics
Series DK
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 115V, 250V
Current 10A
Frequency - Operating 50/60Hz
Applications General
Approvals CSA, UR, VDE
Operating Temperature Range -25°C ~ 100°C
Mounting Chassis Mount
Termination Style Quick Connect
Inductance 1.7mH
Win Source Part Number 1121040-10DKAG5
Manufacturer Homepage www.deltaww.com
Popularity Medium
Supply and Demand Status Limited
Family Name DK
Introduction Date March 28, 2002
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 10DKAG5 CAD Model

Description

The Delta Electronics 1121040-10DKAG5 is a single-stage filter that has a configuration of a quick connect termination style.

  • Series: DK
  • Operating Temperature: -25°C to 100°C
  • Approvals: CSA, UR, and VDE
  • Applications: General
  • Inductance: 1.7mH
  • Current: 10A
  • Mounting: Chassis mountable
  • Filter Type: Single-phase
