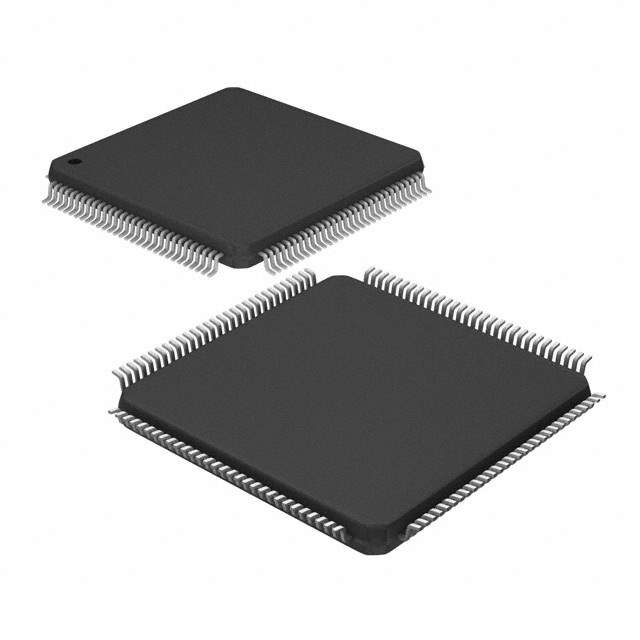

The MB9AF156RPMCGJNE2 is a 32-bit microcontroller from Cypress Semiconductor Corp, belonging to the FM3 family. It is based on the ARM Cortex-M3 core and is designed for embedded systems requiring high performance, low power consumption, and a rich set of peripherals. Applications include industrial control, motor control, and consumer electronics.

Applications:

• Industrial Control: Used in programmable logic controllers (PLCs), motor drives, and industrial automation equipment.
• Motor Control: Employed in brushless DC (BLDC) motor controllers, stepper motor controllers, and servo drives.
• Consumer Electronics: Integrated into home appliances, audio/video equipment, and portable devices.
• Medical Devices: Used in medical instrumentation and monitoring equipment.
• Power Tools: Employed in cordless drills, saws, and other power tools.

Features:

• ARM Cortex-M3 Core: Provides high processing power and efficient code execution.
• Flash Memory: Integrated flash memory for program storage and data logging.
• SRAM: On-chip static RAM for high-speed data access.
• Timers: Multiple timers and counters for precise timing and control functions.
• Communication Interfaces: Includes UART, SPI, and I2C interfaces for communication with peripheral devices.
• ADC/DAC: Analog-to-digital and digital-to-analog converters for analog signal processing.
• CAN Interface: Supports CAN communication for automotive and industrial networking.
• Low Power Consumption: Designed for low power operation, extending battery life in portable applications.

Benefits:

• High Performance: Delivers fast processing speeds for demanding applications.
• Versatile Peripheral Set: Provides a wide range of peripherals for diverse application requirements.
• Low Power Operation: Minimizes power consumption, extending battery life and reducing heat dissipation.
• Robust Communication: Supports CAN communication for reliable networking.
• Easy Development: Supported by comprehensive development tools and software libraries.

Additional Details:

The MB9AF156RPMCGJNE2 operates at a clock frequency of up to 64 MHz. It supports a wide range of operating voltages. The package is typically a QFP (Quad Flat Package). Detailed information, including memory map, register descriptions, and electrical characteristics, can be found in the Cypress datasheet. The device also includes power management modes and security features.
