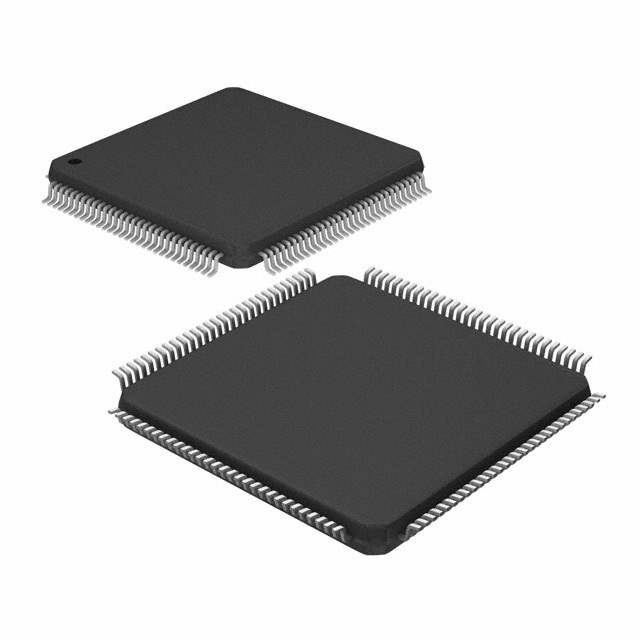

MB9AF156RAPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

MB9AF156RAPMC-G-JNE2

Part No MB9AF156RAPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 544KB FLASH 120LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series FM3 MB9A150RA
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor ARM® Cortex®-M3
Core Size 32-Bit Single-Core
Speed 40MHz
Connectivity CSIO, EBI/EMI, I²C, SPI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 103
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 1.65V ~ 3.6V
Data Converters A/D 24x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 120-LQFP
Supplier Device Package 120-LQFP (16x16)
Base Product Number MB9AF156
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 830236-MB9AF156RAPMC-G-JNE2
Ultra Librarian 3D Model Ultra Librarian MB9AF156RAPMC-G-JNE2 CAD Model

Description

The MB9AF156RAPMC-G-JNE2 is a microcontroller chip from the FM3 MB9A150RA series, designed for embedded applications. It features an ARM Cortex-M3 core processor, providing high-performance computing capabilities.

  • Core Processor: ARM Cortex-M3.
  • Speed: 40MHz.
  • Architecture: 32-bit single-core.
  • Connectivity: CSIO, EBI/EMI, I²C, SPI, and UART/USART.
  • Peripherals: DMA, LVD, POR, PWM, and WDT.
  • Program Memory Size: 544KB.
  • RAM Size: 64K x 8.
  • Voltage Supply Range: 1.65V to 3.6V.
  • Manufacturer: Cypress Semiconductor Corp.
