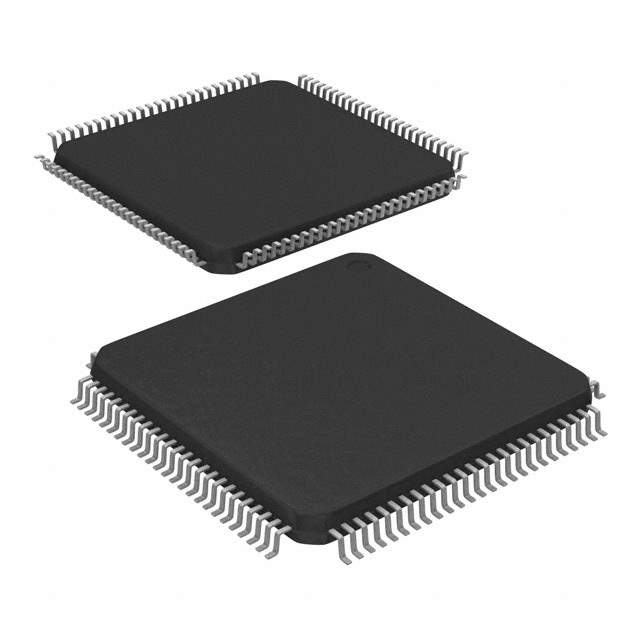

CY9AF156NAPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

CY9AF156NAPMC-G-JNE2

Part No CY9AF156NAPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series FM3 MB9A150RA
Package Tray
Product Status Obsolete
Core Processor ARM® Cortex®-M3
Core Size 32-Bit Single-Core
Speed 40MHz
Connectivity CSIO, EBI/EMI, I²C, SPI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 83
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 1.65V ~ 3.6V
Data Converters A/D 24x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 100-LQFP
Supplier Device Package 100-LQFP (14x14)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1316073-CY9AF156NAPMC-G-JNE2
Ultra Librarian 3D Model Ultra Librarian CY9AF156NAPMC-G-JNE2 CAD Model

Description

The CY9AF156NAPMC-G-JNE2 is an embedded microcontroller from Cypress Semiconductor Corp.

  • Core Processor: ARM Cortex-M3
  • Speed: 40MHz
  • Program Memory Size: 544KB (544K x 8)
  • RAM Size: 64K x 8
  • Connectivity: CSIO, EBI/EMI, I2C, SPI, UART/USART
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Number of I/Os: 83
  • A/D Data Converters: 24x12b
  • Package: 100-LQFP
  • Temperature Range: -40°C to 85°C
  • Supply Voltage Range: 1.65V to 3.6V
  • Product Category: Obsolete
