The CY8CMBR2044-24LKXI is a CapSense capacitive touch sensor integrated circuit (IC) from Cypress Semiconductor Corp. It is designed to enable touch-based user interfaces in a wide range of applications, providing a reliable and intuitive way to interact with electronic devices. These ICs are used to detect human touch through capacitive sensing technology.

Applications:

• Consumer Electronics: Touchpads, touchscreens, and capacitive buttons in smartphones, tablets, and other portable devices.
• Home Appliances: Touch-based controls for washing machines, refrigerators, ovens, and other appliances.
• Industrial Equipment: Touch-sensitive interfaces for control panels, HMIs (Human Machine Interfaces), and other industrial applications.
• Automotive: Capacitive touch controls for infotainment systems, climate control, and other in-car applications.
• Medical Devices: Touch-based interfaces for medical equipment, such as patient monitors and diagnostic instruments.

Features:

• Multiple Sensing Channels: Supports multiple capacitive sensing channels for detecting multiple touch points.
• Automatic Tuning: Automatically adjusts sensing parameters to compensate for environmental variations.
• Low Power Consumption: Designed for low power operation, extending battery life in portable devices.
• Noise Immunity: Offers high immunity to noise and interference, ensuring reliable touch detection.
• Proximity Detection: Can be configured to detect proximity, enabling gesture recognition and wake-on-approach features.

Benefits:

• Improved User Experience: Provides an intuitive and responsive touch-based interface.
• Enhanced Design Aesthetics: Enables sleek and modern product designs without mechanical buttons.
• Increased Reliability: Eliminates mechanical wear and tear associated with traditional buttons.
• Reduced System Cost: Integrates multiple sensing functions into a single IC.
• Simplified System Design: Easy to integrate into existing systems.

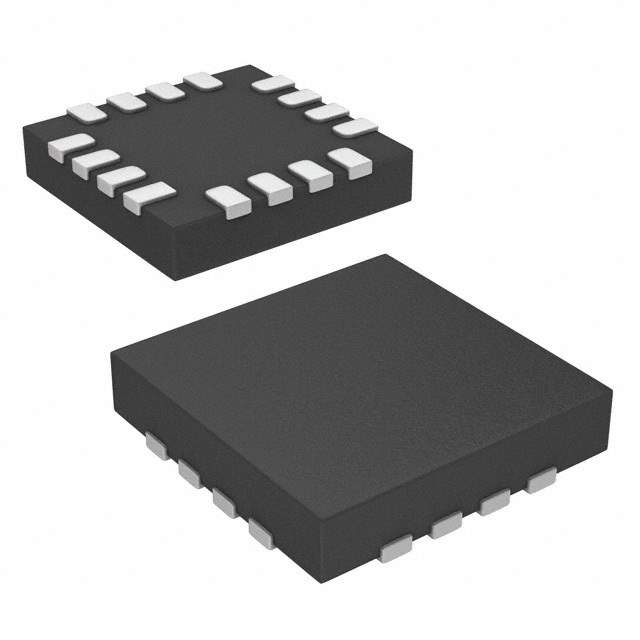

The CY8CMBR2044-24LKXI is available in a QFN (Quad Flat No-Leads) package and is designed for surface mount assembly. It features advanced signal processing algorithms to minimize false triggers and ensure reliable touch detection. The device is also capable of operating over a wide temperature range. Cypress CapSense technology is widely recognized for its robustness and performance in capacitive touch sensing applications.

Additional Details: The operating voltage for this sensor is typically 1.71V to 5.5V.
