Same model may have multiple batches, images only for reference.

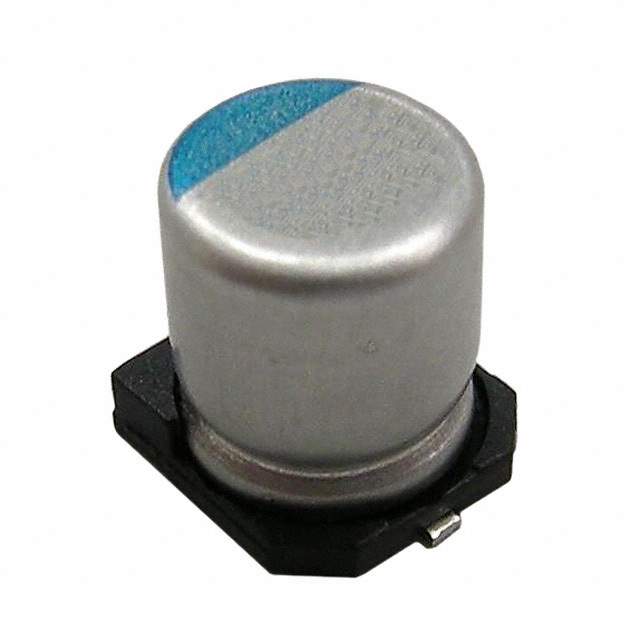

APXJ160ARA271MF80G Real Image
Same model may have multiple batches, images only for reference.

APXJ160ARA271MF80G

Part No APXJ160ARA271MF80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 270UF 20% 16V SMD / 270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 13mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer United Chemi-Con
Packaging Reel - TR
Type Polymer
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 13mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 223 mA @ 120 Hz
Ripple Current @ High Frequency 4.46 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-APXJ160ARA271MF80GCT,565-APXJ160ARA271MF80GTR,565-APXJ160ARA271MF80GDKR
Standard Package 900
Win Source Part Number 1328612-APXJ160ARA271MF80G
Ultra Librarian 3D Model Ultra Librarian APXJ160ARA271MF80G CAD Model

Description

The United Chemi-Con APXJ160ARA271MF80G is an Aluminum - Polymer Capacitor with a capacitance of 270µF and voltage rated of 16V.

  • Capacitance: 270µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 13mOhm
  • Package: Radial, Can - SMD
  • Size/Dimension: 0.248" Dia (6.30mm)
  • Height-Seated (Max): 0.315" (8.00mm)
  • Application: General Purpose
  • Lifetime @ Temp.: 15000 Hrs @ 105°C
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Temperature Range - Operating: -55°C ~ 105°C
  • RoHS3 Compliant: True
  • Ripple Current @ Low Frequency: 223 mA @ 120 Hz
  • Ripple Current @ High Frequency: 4.46 A @ 100 kHz
  • Popularity: Medium
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8532.22.0020
  • Other Part Numbers: 565-APXJ160ARA271MF80GCT, 565-APXJ160ARA271MF80GTR, 565-APXJ160ARA271MF80GDKR
