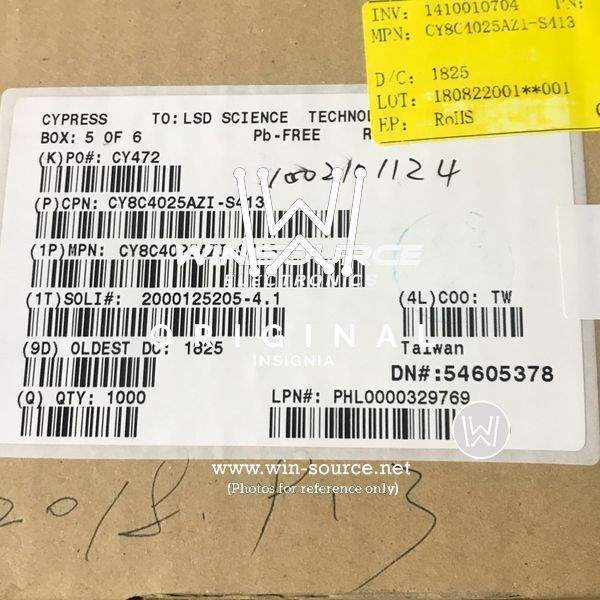

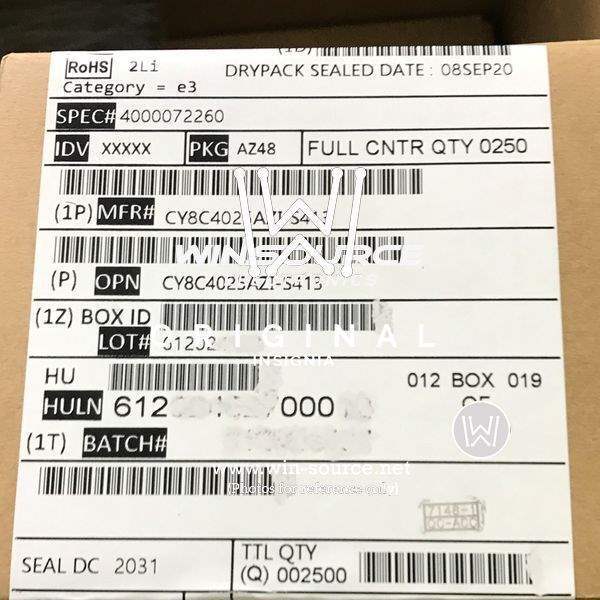

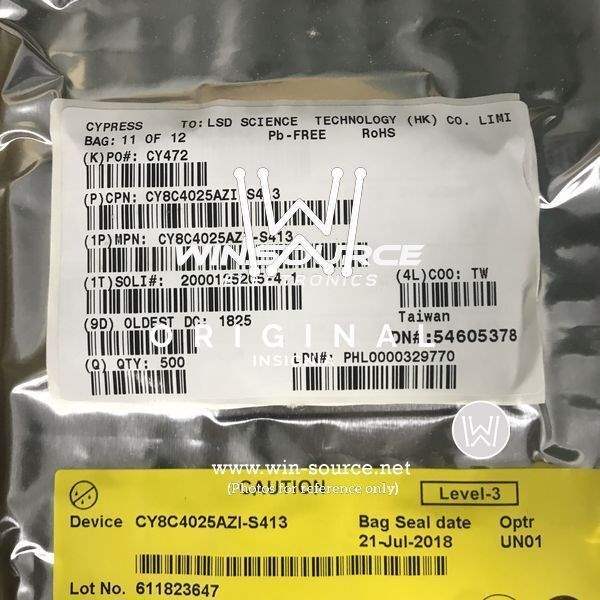

CY8C4025AZI-S413 Cypress Semiconductor Corp CY8C4025AZI-S413 Real Image CY8C4025AZI-S413 label picture CY8C4025AZI-S413 label picture 2 CY8C4025AZI-S413 label picture 3
Same model may have multiple batches, images only for reference.
CY8C4025AZI-S413 Cypress Semiconductor Corp CY8C4025AZI-S413 Real Image CY8C4025AZI-S413 label picture CY8C4025AZI-S413 label picture 2 CY8C4025AZI-S413 label picture 3
CY8C4025AZI-S413 Cypress Semiconductor Corp CY8C4025AZI-S413 Real Image CY8C4025AZI-S413 label picture CY8C4025AZI-S413 label picture 2 CY8C4025AZI-S413 label picture 3
Same model may have multiple batches, images only for reference.

CY8C4025AZI-S413

Part No CY8C4025AZI-S413
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 32KB FLASH 48TQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cypress Semiconductor Corp
Packaging Tray
Core Processor ARM Cortex -M0+
Core Size 32-Bit
Speed 24MHz
Connectivity I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
Peripherals Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT
Number of I/O 36
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 1.71V ~ 5.5V
Data Converters A/D 1x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 48-LQFP
Supplier Device Package 48-TQFP (7x7)
Manufacturer Pack Quantity 500
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804418-CY8C4025AZI-S413
Ultra Librarian 3D Model Ultra Librarian CY8C4025AZI-S413 CAD Model

Description

The Cypress Semiconductor Corp. CY8C4025AZI-S413 is an electronic component from Cypress Semiconductor Corp..

  • Packaging: Tray
  • Mounting Type: Surface Mount
  • Processor: ARM Cortex-M0+ core
  • Processor Speed: 24MHz
  • Connectivity Options: I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
  • Peripherals: Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT
  • I/Os: 36
  • Program Memory Size: 32KB
  • RAM Size: 4K x 8
  • Data Converters: A/D 1x10b
  • Package: 48-TQFP (7x7)
  • Supply Voltage Range: 1.71V to 5.5V
