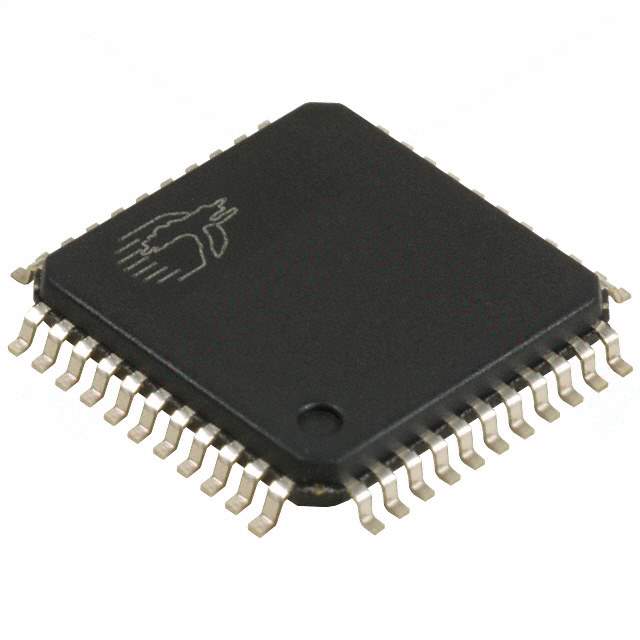

CY8C28513-24AXI Real Image
Same model may have multiple batches, images only for reference.

CY8C28513-24AXI

Part No CY8C28513-24AXI
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description PSoC Programmable System-on-Chip
Datasheet
CY8C28513-24AXI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Series PSOC1 CY8C28xxx
Packaging Tray
Core Processor M8C
Core Size 8-Bit
Speed 24MHz
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals LVD, POR, PWM, WDT
Number of I/O 40
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Supply Voltage 3 V ~ 5.25 V
Data Converters A/D 4x14b; D/A 4x9b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 44-LQFP
Manufacturer Package 44-TQFP (10x10)
Win Source Part Number 1165830-CY8C28513-24AXI
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY8C28513
Introduction Date March 15, 2003
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY8C28513-24AXI CAD Model

Description

The Cypress Semiconductor Corp CY8C28513-24AXI is a microcontroller IC that is part of the PSOC1 CY8C28xxx series.

  • Core Processor: M8C
  • Speed: 24MHz
  • Package: 44-LQFP
  • Program Memory Size: 16KB (16K x 8) FLASH
  • RAM Size: 1K x 8
  • Data Converters: A/D 4x14b and D/A 4x9b
  • Connectivity: I2C, IrDA, SPI, UART/USART
