Same model may have multiple batches, images only for reference.

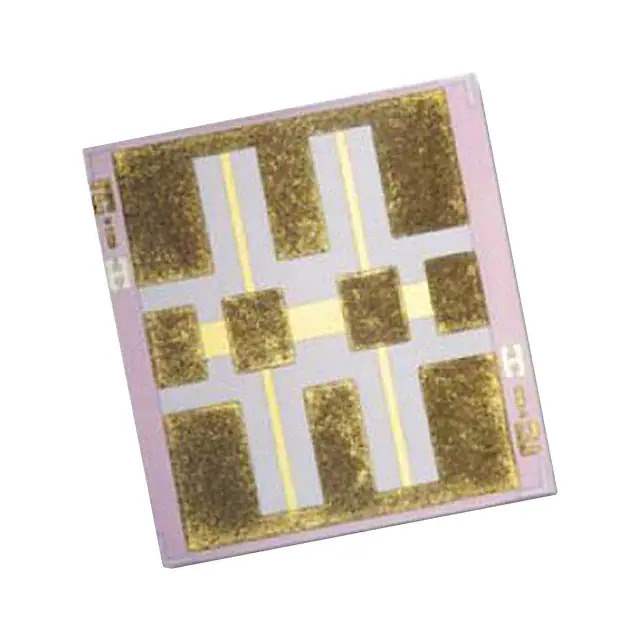

ATN3580-12 Real Image
Same model may have multiple batches, images only for reference.

ATN3580-12

Part No ATN3580-12
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 12DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 12dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 862395-ATN3580-12
Ultra Librarian 3D Model Ultra Librarian ATN3580-12 CAD Model

Description

The 862395-ATN3580-12 is an attenuator designed for RF and wireless applications.

  • Power Rating: 1W
  • Attenuation: 12dB
  • Frequency Range: 100 MHz to 40 GHz
  • Package: Module
  • Supplied in: Trays
  • Standard Package Quantity: 100 pcs
  • Manufacturer: Skyworks Solutions Inc.
  • Series: ATN3580
  • Status: Active
  • ECCN: EAR99
  • MSL Level: 1
