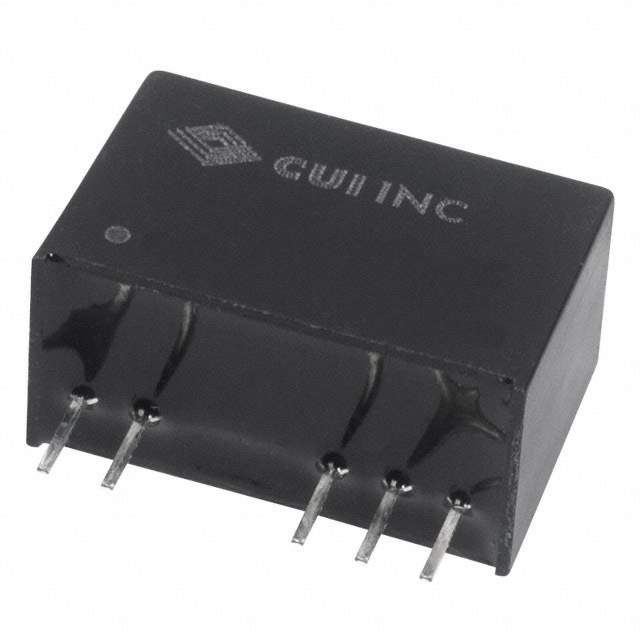

VQA-S12-D15-SIP Real Image
Same model may have multiple batches, images only for reference.

VQA-S12-D15-SIP

Part No VQA-S12-D15-SIP
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V -8.7V 2W / Isolated Module DC DC Converter 2 Output 15V -8.7V 80mA, 40mA 11.6V - 12.4V Input
Datasheet
VQA-S12-D15-SIP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series VQA
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 11.6V
Voltage - Input (Max) 12.4V
Voltage - Output 1 15V
Voltage - Output 2 -8.7V
Current - Output (Max) 80mA, 40mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Approval Agency CB Scheme, IEC, UL
Standard Number 60950-1
Base Product Number VQA-S12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 102-2880,VQAS12D15SIP,2266-VQA-S12-D15-SIP
Standard Package 25
Win Source Part Number 1045995-VQA-S12-D15-SIP
Ultra Librarian 3D Model Ultra Librarian VQA-S12-D15-SIP CAD Model

Description

The VQA-S12-D15-SIP is an isolated module type DC DC converter with a power of 2W and a voltage isolation of 3kV.

  • Type: DC DC converter
  • Module Type: Isolated Module
  • Power: 2W
  • Voltage Isolation: 3kV
  • Outputs: Two
  • Current Output: 80mA and 40mA
  • Input Voltage Range: 11.6V to 12.4V
  • Voltage Output: 15V and -8.7V
  • Efficiency: 80%
  • Mounting Technology: Through-hole
  • Package/Case: 7-SIP Module, 5 Leads
  • Temperature Range: -40°C to 105°C
  • Application: ITE (Commercial)
  • Supply and Demand Status: Balanced
