Same model may have multiple batches, images only for reference.

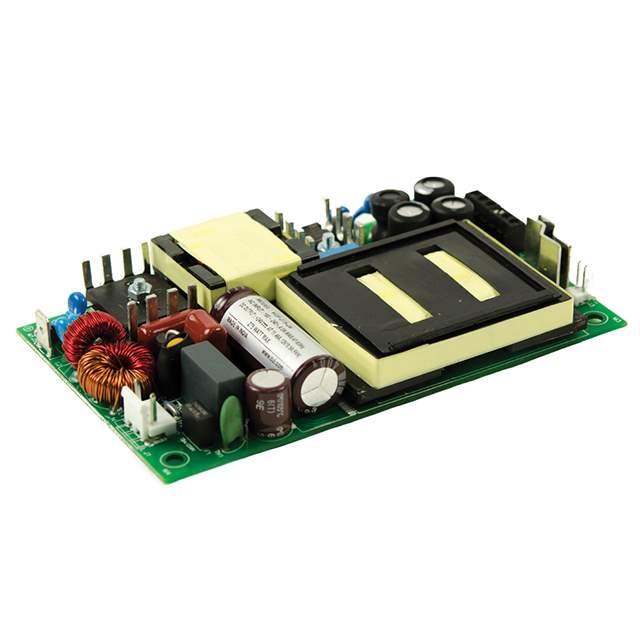

VMS-275-12-1 Real Image
Same model may have multiple batches, images only for reference.

VMS-275-12-1

Part No VMS-275-12-1
Manufacturer CUI Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 160W / Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
Datasheet
VMS-275-12-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr CUI Inc.
Series VMS-275 (275W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 80 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 13.33 A
Power (Watts) 160W (275W Forced Air)
Applications Medical
Voltage - Isolation 4.2 kV
Efficiency 88%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm)
Approval Agency CB Scheme, EN, FCC, IEC, TUV, UL
Standard Number 55011 Class B; 60601-1; 61000-3-2; 61000-3-3
Base Product Number VMS-275
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.6018
Other Names 2266-VMS-275-12-1
Standard Package 42
Win Source Part Number 1185202-VMS-275-12-1
Ultra Librarian 3D Model Ultra Librarian VMS-275-12-1 CAD Model

Description

The VMS-275-12-1 is an AC/DC converter from CUI Inc. that is designed for medical applications.

  • Type: AC/DC Converter
  • Application: Medical
  • Type: Open Frame
  • Power Output: 160W (275W forced air)
  • Features: Adjustable Output, Power Factor Correction (PFC), Standby Output, Universal Input
  • Input Voltage: 80 ~ 264 VAC
  • Isolation Voltage: 4.2 kV
  • Output Voltage: 12V
  • Output Current: 13.33 A
  • Efficiency: 88%
  • Operating Temperature: -40°C ~ 70°C (with derating)
  • Dimensions: 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm)
  • Approvals: CB Scheme, EN, FCC, IEC, TUV, UL
  • Standards: 55011 Class B, 60601-1, 61000-3-2, 61000-3-3
