Same model may have multiple batches, images only for reference.

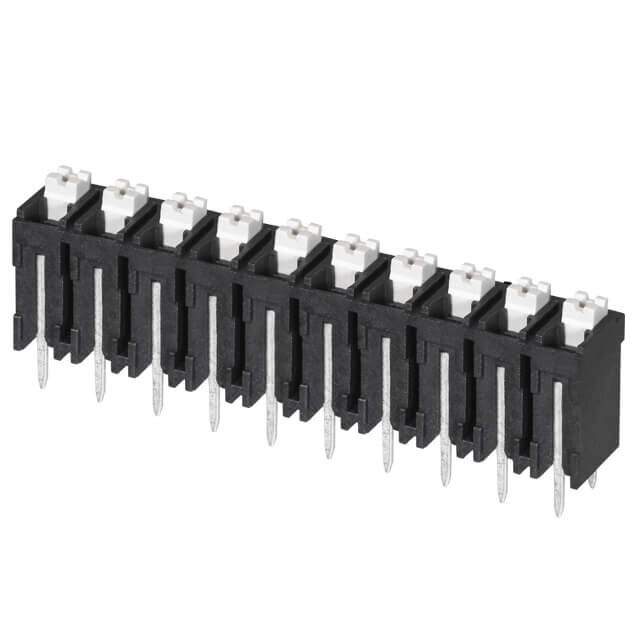

TBLH10V-500-10BK Real Image
Same model may have multiple batches, images only for reference.

TBLH10V-500-10BK

Part No TBLH10V-500-10BK
Manufacturer CUI Inc.
Catalog Terminal Blocks
Description TERMINAL BLOCK, SCREWLESS, HIGH / 10 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
Datasheet
TBLH10V-500-10BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Wire to Board
Mfr CUI Devices
Series TBLH10V-500
Package Tray
Number of Levels 1
Positions Per Level 10
Pitch 0.197" (5.00mm)
Mating Orientation Vertical with Board
Current 10 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Push Button Clamp
Features Push Button Actuated
Color Black
Temperature Range - Operating -40°C ~ 130°C
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Copper Alloy - Tin Plated
Base Product Number TBLH10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 102-TBLH10V-500-10BK
Standard Package 240
Win Source Part Number 993604-TBLH10V-500-10BK
Ultra Librarian 3D Model Ultra Librarian TBLH10V-500-10BK CAD Model

Description

The CUI Devices TBLH10V-500-10BK is a terminal block with a pitch of 0.197" (5.00mm) and 10 positions per level.

  • Pitch: 0.197" (5.00mm)
  • Positions per Level: 10
  • Voltage Rating: 300V
  • Current Rating: 10A
  • Wire Gauge Accommodated: 16-24 AWG
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Mounting Type: through hole
  • Packaging: tray packaging
  • Standard Package: 240
  • Wire Termination Type: screwless and push-button clamp
  • Operating Temperature Range: -40°C to 130°C
  • Manufacturer: CUI Devices
