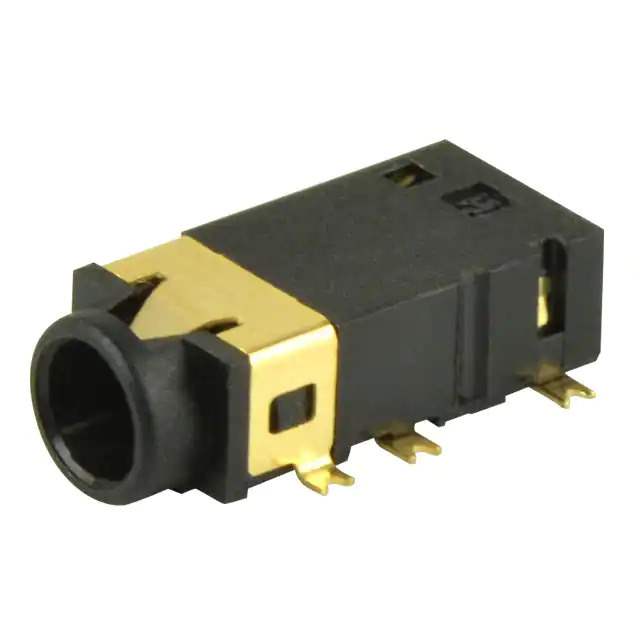

SJ2-35954D-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ2-35954D-SMT-TR

Part No SJ2-35954D-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description AUDIO JACK, 3.5 MM, RT, 4 CONDUC
Datasheet
SJ2-35954D-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr CUI Inc.
Series SJ2
Package Tape & Reel
Product Status Active
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 6 Contacts
Internal Switch(s) Two Switches
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Gold
Body Color Black
Housing Material Polyamide (PA10T), Nylon 10T
Contact Material Copper Alloy
Base Product Number SJ2-35
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 848319-SJ2-35954D-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ2-35954D-SMT-TR CAD Model

Description

The SJ2-35954D-SMT-TR is a female phone jack connector from CUI Inc.

  • Series: SJ2
  • Feature: Board Guide
  • Conductors: 4
  • Contacts: 6
  • Application: Stereo
  • Voltage Rating: 12VDC
  • Current Rating: 1A
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Shielded: Unshielded
  • Housing Material: Polyamide and Nylon
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -25°C to 85°C
  • Package: Tape & Reel
  • Standard Package: 1,000 pcs
