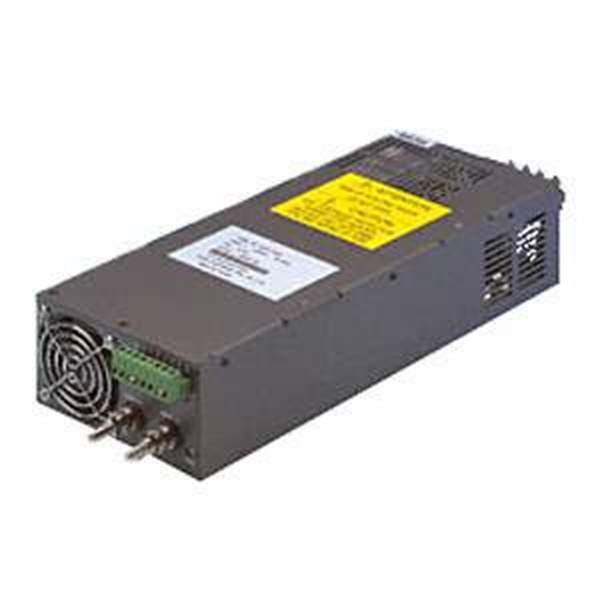

VSCP-800-15 Real Image
Same model may have multiple batches, images only for reference.

VSCP-800-15

Part No VSCP-800-15
Manufacturer CUI Inc.
Catalog Board Mount AC DC Converters
Datasheet
VSCP-800-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr CUI Inc.
Series VSCP-800 (800W)
Package Box
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 260 VAC
Voltage - Output 1 15V
Current - Output 1 53 A
Power (Watts) 800W
Applications ITE (Commercial)
Efficiency 85%
Temperature Range - Operating 0°C ~ 65°C (With Derating)
Features Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type Chassis Mount
Dimension 11.42" L x 4.72" W x 2.66" H (290.0mm x 120.0mm x 67.5mm)
Approval Agency CB, CE, cURus, TUVgs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1315247-VSCP-800-15
Ultra Librarian 3D Model Ultra Librarian VSCP-800-15 CAD Model

Description

The VSCP-800 series of enclosed AC/DC converters from CUI Inc. is an 800W power supply with a universal input voltage range of 90-260VAC.

  • Series: VSCP-800
  • Input Voltage: 90-260VAC
  • Power: 800W
  • Features: Adjustable output, load sharing, PFC, remote on/off, remote sense
  • Application: ITE
  • Output Voltage: 15VDC
  • Output Current: 53A
  • Efficiency: 85%
  • Minimum Load: 0A
  • Mounting: Chassis mount
  • Operating Temperature: 0°C to 65°C (with derating)
  • Dimensions: 290mm x 120mm x 67.5mm
  • Approvals: CB, CE, cURus, TUVgs
  • ECCN: EAR99
  • Status: Obsolete
