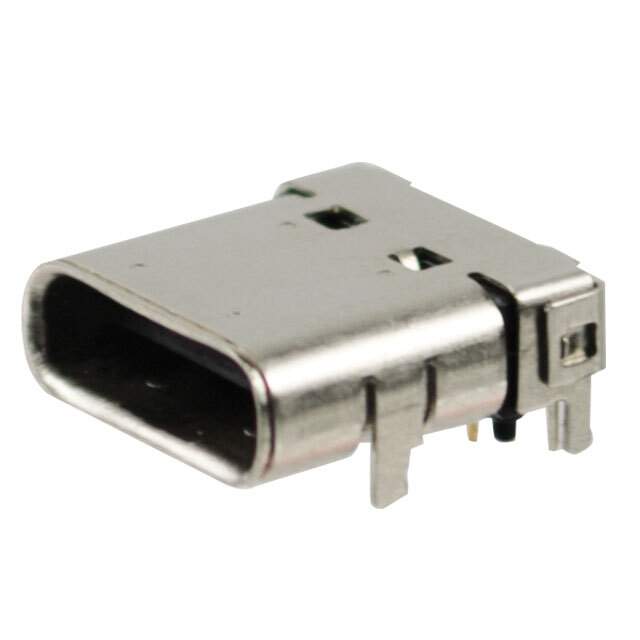

UJ31-CH-G1-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

UJ31-CH-G1-SMT-TR

Part No UJ31-CH-G1-SMT-TR
Manufacturer CUI Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB3.1 TYPEC 24P SMD RA / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Datasheet
UJ31-CH-G1-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr CUI Devices
Series UJ31
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1) )
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A, 6.25A
Voltage - Rated 20V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Base Product Number UJ31-CH
Standard Package 1,050
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348572-UJ31-CH-G1-SMT-TR
Ultra Librarian 3D Model Ultra Librarian UJ31-CH-G1-SMT-TR CAD Model

Description

The CUI UJ31 series USB-C connector assembly is a shielded, 24-contact, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) type connector with a horizontal mounting feature.

  • Manufacturer: CUI
  • Series: UJ31
  • Connector Type: USB-C
  • Contacts: 24
  • USB Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
  • Mounting Feature: Horizontal
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 20V
  • Current Rating (Amps): 0.25A, 1.25A, 5A, 6.25A
  • Packaging: Tape and Reel
  • Shell/Shielding Material: Steel, Stainless
  • Mounting Options: Surface Mount, Right-Angle and Through-Hole
  • Temperature Range: -25°C to 85°C
  • Shielded: Yes
