Same model may have multiple batches, images only for reference.

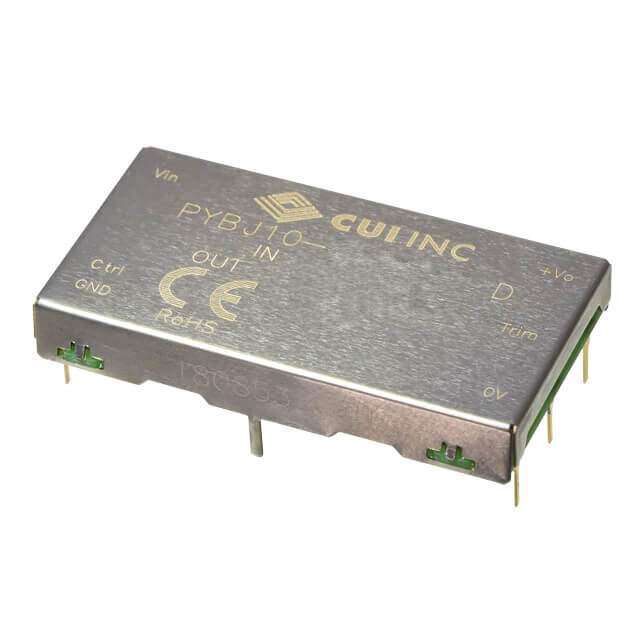

PYBJ10-Q24-S12-D Real Image
Same model may have multiple batches, images only for reference.

PYBJ10-Q24-S12-D

Part No PYBJ10-Q24-S12-D
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 10W / Isolated Module DC DC Converter 1 Output 12V 833mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PYBJ10 (10W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 833mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.59" L x 0.87" W x 0.27" H (40.2mm x 22.0mm x 6.8mm)
Approval Agency CB Scheme, IEC, UL
Standard Number 62368-1
Base Product Number PYBJ10
Standard Package 22
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339102-PYBJ10-Q24-S12-D
Ultra Librarian 3D Model Ultra Librarian PYBJ10-Q24-S12-D CAD Model

Description

The PYBJ10 (10W) isolated module DC-DC converter is a high-performance power supply that comes with a variety of features.

  • Features: remote on/off, over-current protection (OCP), over-voltage protection (OVP), and short-circuit protection (SCP)
  • Application: ITE (Commercial)
  • Input Voltage: 9V to 36V
  • Output Voltage: 12V
  • Maximum Output Current: 833mA
  • Size: 1.59" L x 0.87" W x 0.27" H (40.2mm x 22.0mm x 6.8mm)
  • Mounting: through hole
  • Efficiency: 87%
  • Isolation Voltage: 1.5 kV
  • Package: 6-DIP module
  • Standard Package: 22
  • Approvals: CB Scheme, IEC, and UL
  • Standard Number: 62368-1
