Same model may have multiple batches, images only for reference.

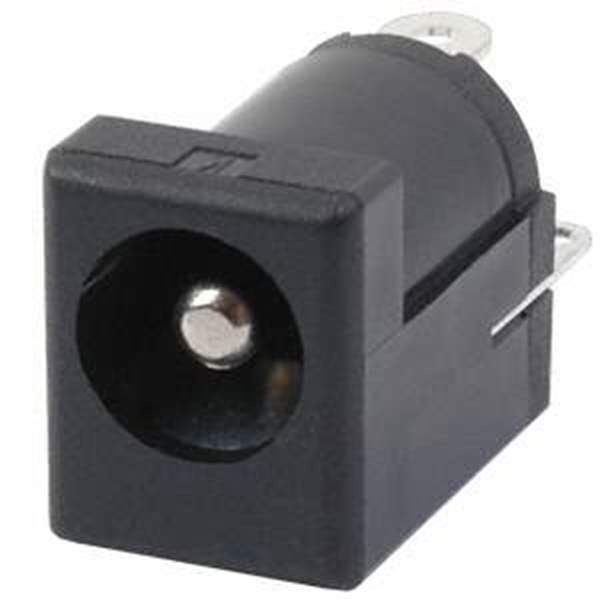

PJ-044BH

Name: PJ-044BH
Brand: CUI Inc.
SKU: 1334240
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-044BH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole
Datasheet	PJ-044BH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter	0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Internal Switch(s)	Single Switch, Normally Closed
Mounting	Through Hole
Termination	Solder Eyelet(s)
Shielding	Unshielded
Features	Board Guide
Voltage - Rated	24VDC
Current Rating (Amps)	5 A
Mating Length/Depth	0.354" (9.00mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-044
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-1173R,PJ044BH,CP-044BH
Standard Package	500
Win Source Part Number	1334240-PJ-044BH
Ultra Librarian 3D Model	Ultra Librarian PJ-044BH CAD Model

Description

The PJ-044BH from CUI Devices is a power connector that falls under the category of connectors, interconnects and barrel connectors.

Connector Type: male jack
Conductors: 2
Contacts: 3
Contact Material: brass, copper alloy
Contact Material Plating: silver
Voltage Rating: 24VDC
Current Rating: 5A
Mounting Type: through-hole
Packaging: bag
Standard Package: 500
Temperature Range: -25°C to 85°C
ROHS3: compliant
REACH: unaffected
