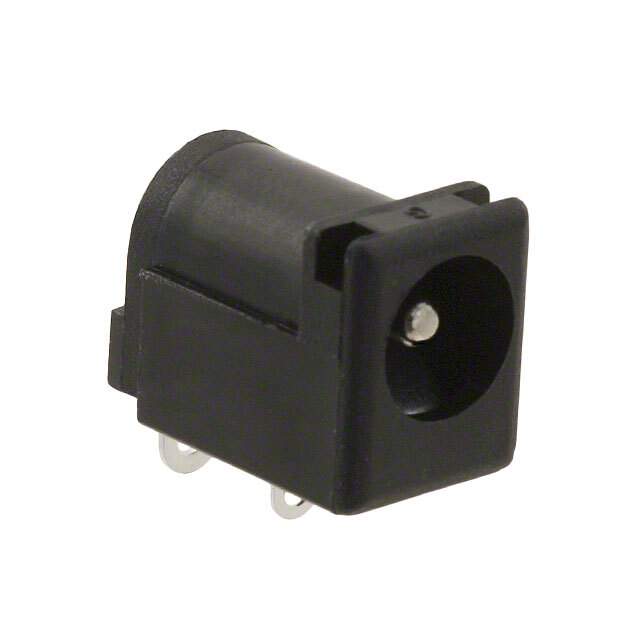

Same model may have multiple batches, images only for reference.

PJ-037AH

Name: PJ-037AH
Brand: CUI Inc.
SKU: 1334269
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-037AH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2X5.5MM SOLDER / Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-037AH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter	0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting	Through Hole, Right Angle
Termination	Solder Eyelet(s)
Shielding	Unshielded
Voltage - Rated	24VDC
Current Rating (Amps)	5 A
Mating Length/Depth	0.354" (9.00mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-037
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-1150R,PJ037AH,CP-037AH
Standard Package	500
Win Source Part Number	1334269-PJ-037AH
Ultra Librarian 3D Model	Ultra Librarian PJ-037AH CAD Model

Alternative Products

Description

The PJ series power connector from CUI Devices is a through-hole mounted jack with a mating diameter of 2.10mm ID and 5.50mm OD.

Connector Type: Jack
Mounting: Through-hole
Mating Diameter: 2.10mm ID and 5.50mm OD
Voltage Rating: 24VDC
Current Rating: 5A
Termination: Solder eyelets
Contact Plating: Silver
Contact Material: Brass and copper alloy
Mating Length: 0.354 inches
Operating Temperature: -25°C to 85°C
Body Color: Black
Standard Package: 500 units
Packaging: Bags
ECCN: EAR99
ROHS3 Compliant: Yes
