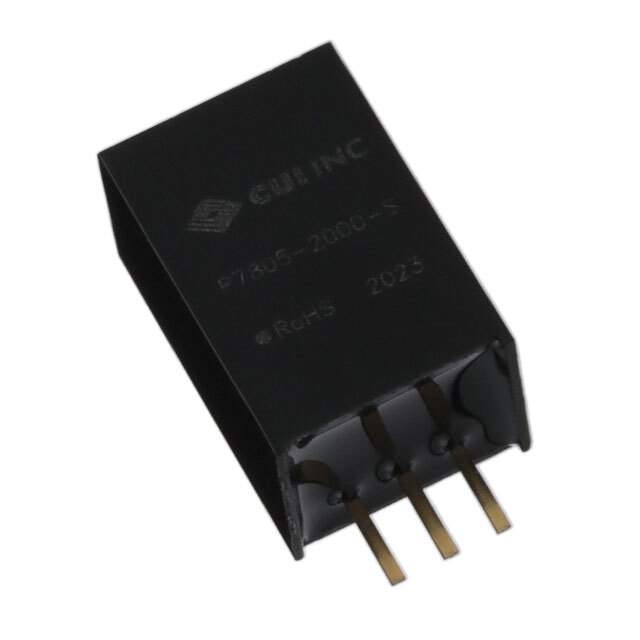

Same model may have multiple batches, images only for reference.

P7805-2000-S

Name: P7805-2000-S
Brand: CUI Inc.
SKU: 1339240
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	P7805-2000-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Non-Isolated PoL Module DC DC Converter 1 Output 5V 2A 8V - 36V Input
Datasheet	P7805-2000-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	P78-2000-S
Package	Tube
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	90%
Mounting Type	Through Hole
Package / Case	3-SIP Module
Size / Dimension	0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Approval Agency	EN
Standard Number	55024; 55032 Class A
Base Product Number	P7805
Standard Package	44
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1339240-P7805-2000-S
Ultra Librarian 3D Model	Ultra Librarian P7805-2000-S CAD Model

Alternative Products

Description

The CUI Inc. 1339240-P7805-2000-S is a non-isolated PoL module designed for use in various electronic devices.

Manufacturer: CUI Inc.
Product Name: 1339240-P7805-2000-S
Series: P78-2000-S
Package: Tube
Standard Package: 44
Power: 10W
Current-Output (Max): 2A
Voltage-Input (Min): 8V
Voltage-Input (Max): 36V
Voltage-Output: 5V
Efficiency: 90%
Mounting Type: Through Hole
Module Package/Case: 3-SIP
MSL Level: 1 (unlimited)
EN Approved: Yes
Standard Numbers: 55024 and 55032 Class A
